ExhibitPlus WaterPump7Nov07 007

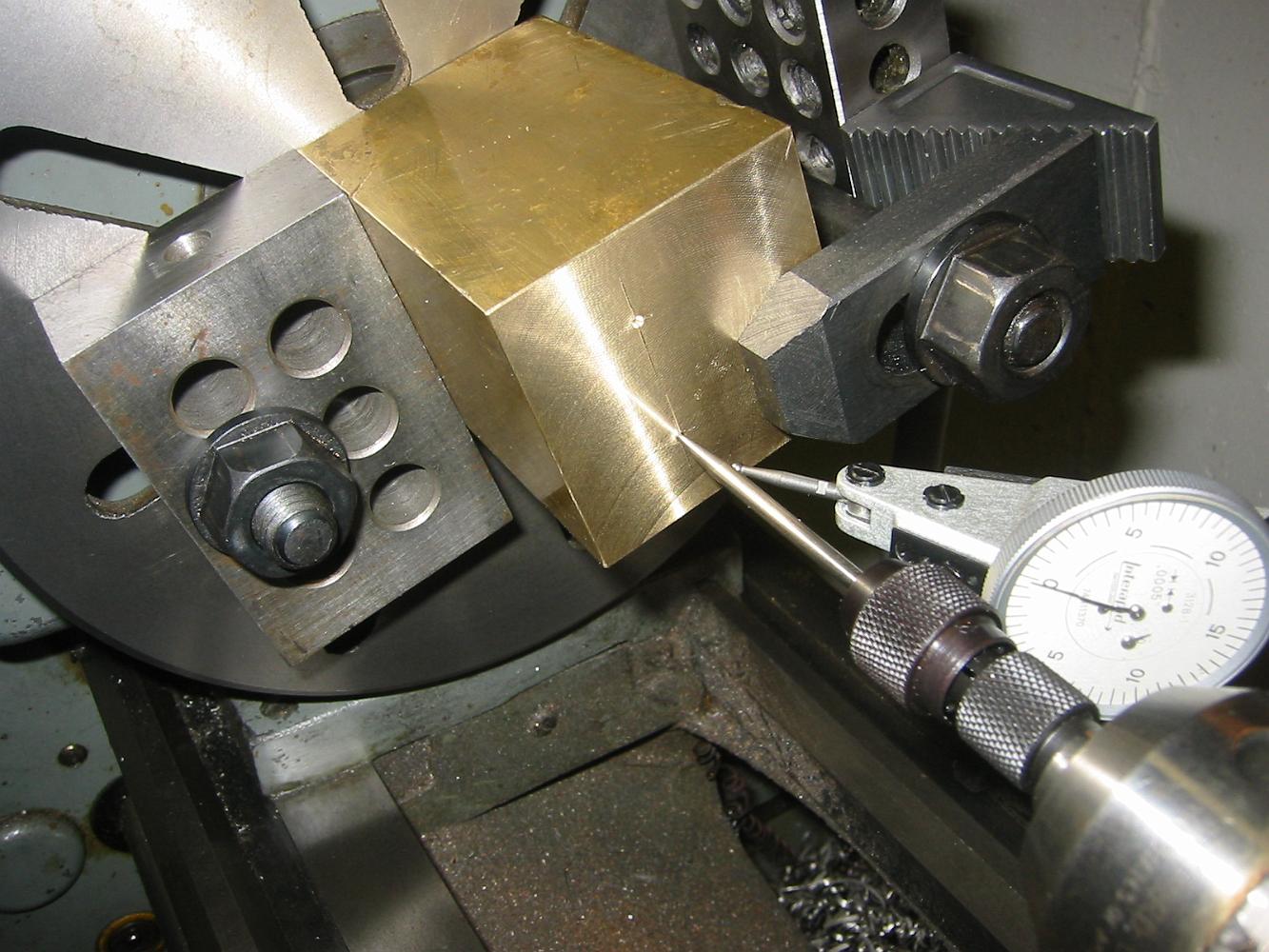

Using the wiggler with the point in the punch mark for the piston center, we put an indicator on the wiggler shaft and move the part around on the faceplate until it is on center.
