ExhibitPlus WaterPump7Nov07 005

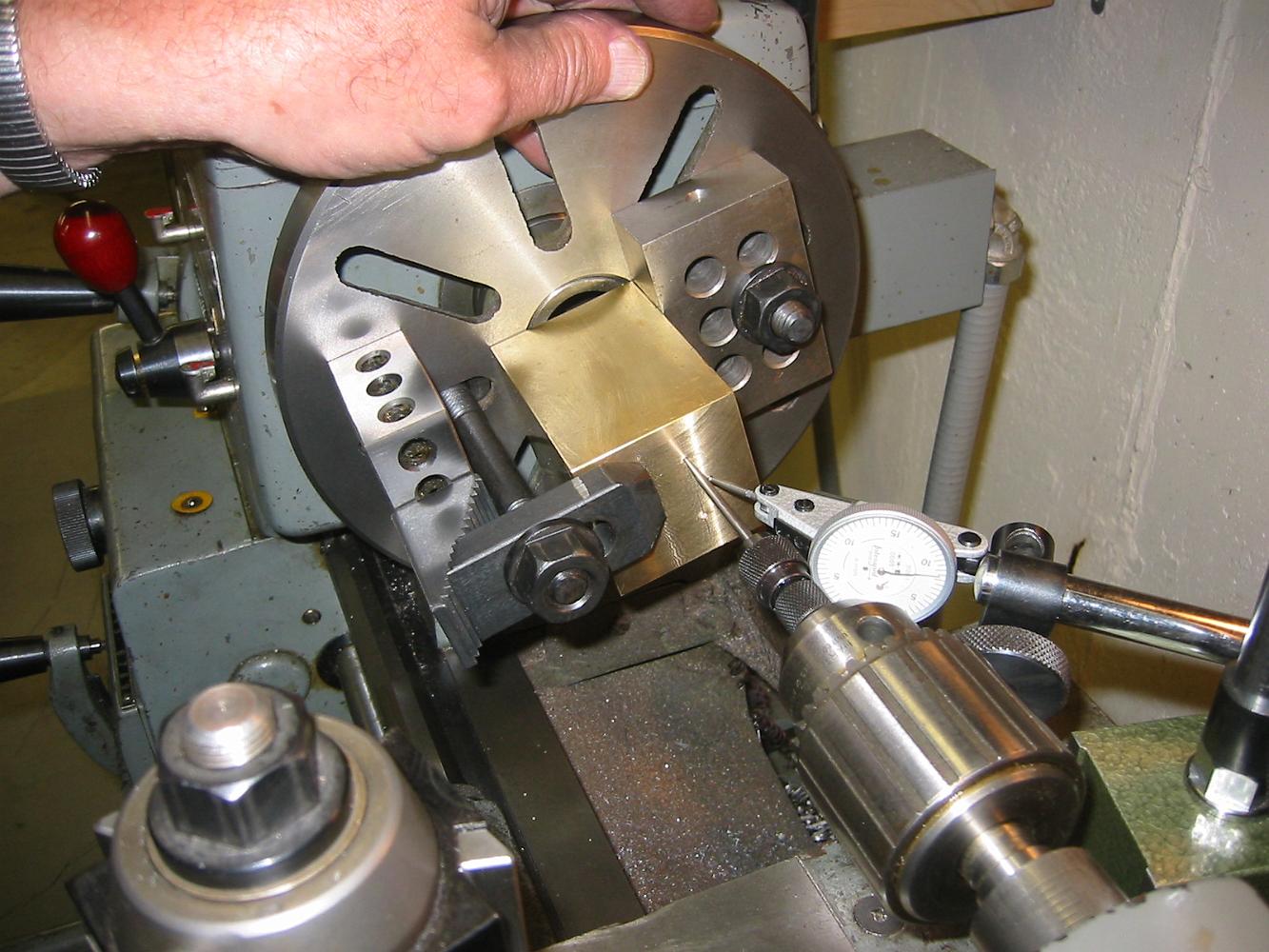

To insure a straight bore, we leveled the lathe all around using the master precision level. After a half-hour of tightening, loosening and adjusting each of the four feet, we got most of the twist out of the bed and succeeded in getting it true within 0.0005 of an inch front to back and side to side. We spend the remaining time creating a clamping system to hold the bar to the faceplate.
