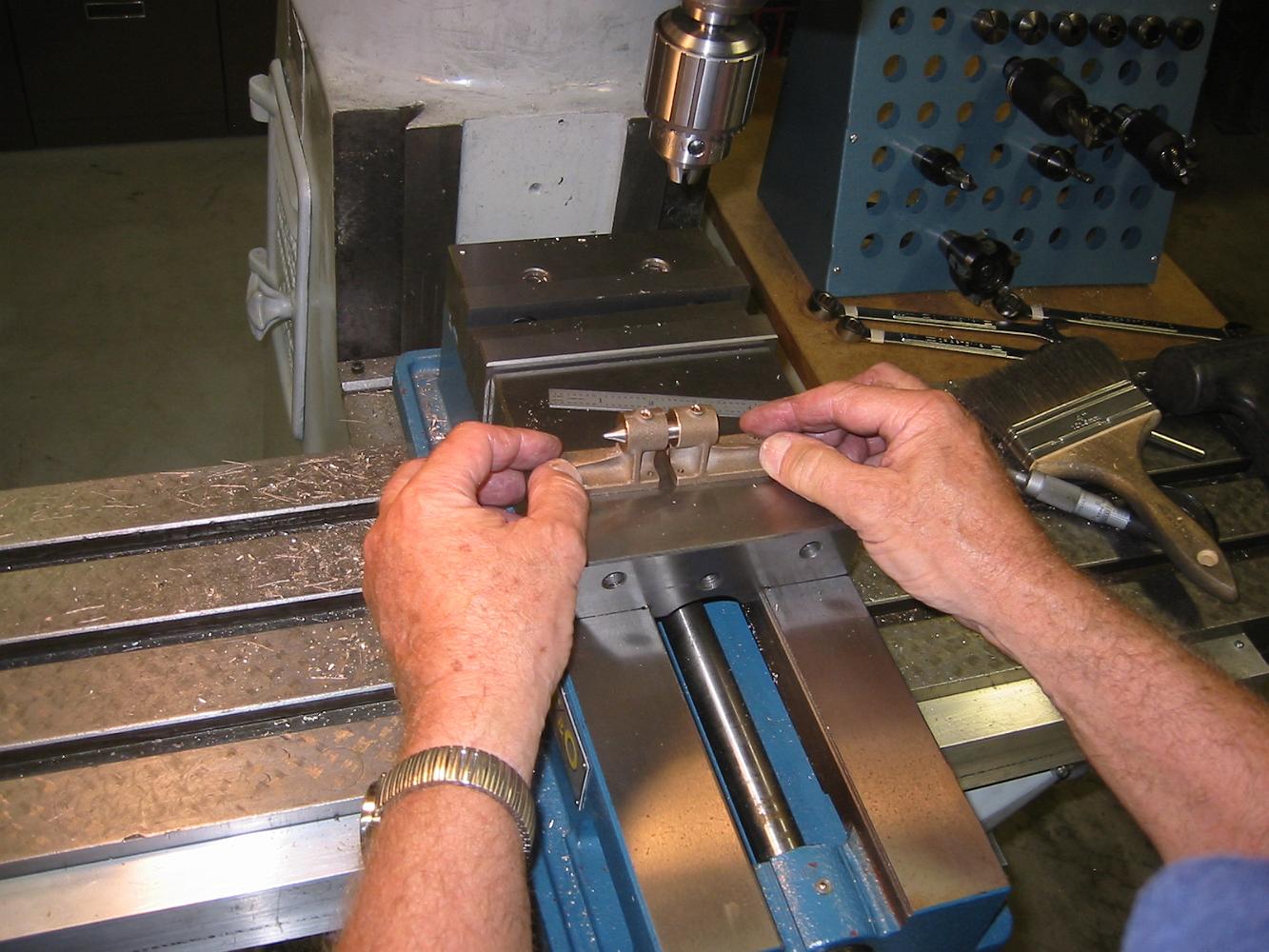

Using a single pin in both bores to check the parallelism of the two pillow blocks. Since a single shaft will have to turn in both parts, having the bores directly in line insures a non-binding fit.
