ExhibitPlus MotionStructureAssemblyandProblems16Oct07 004

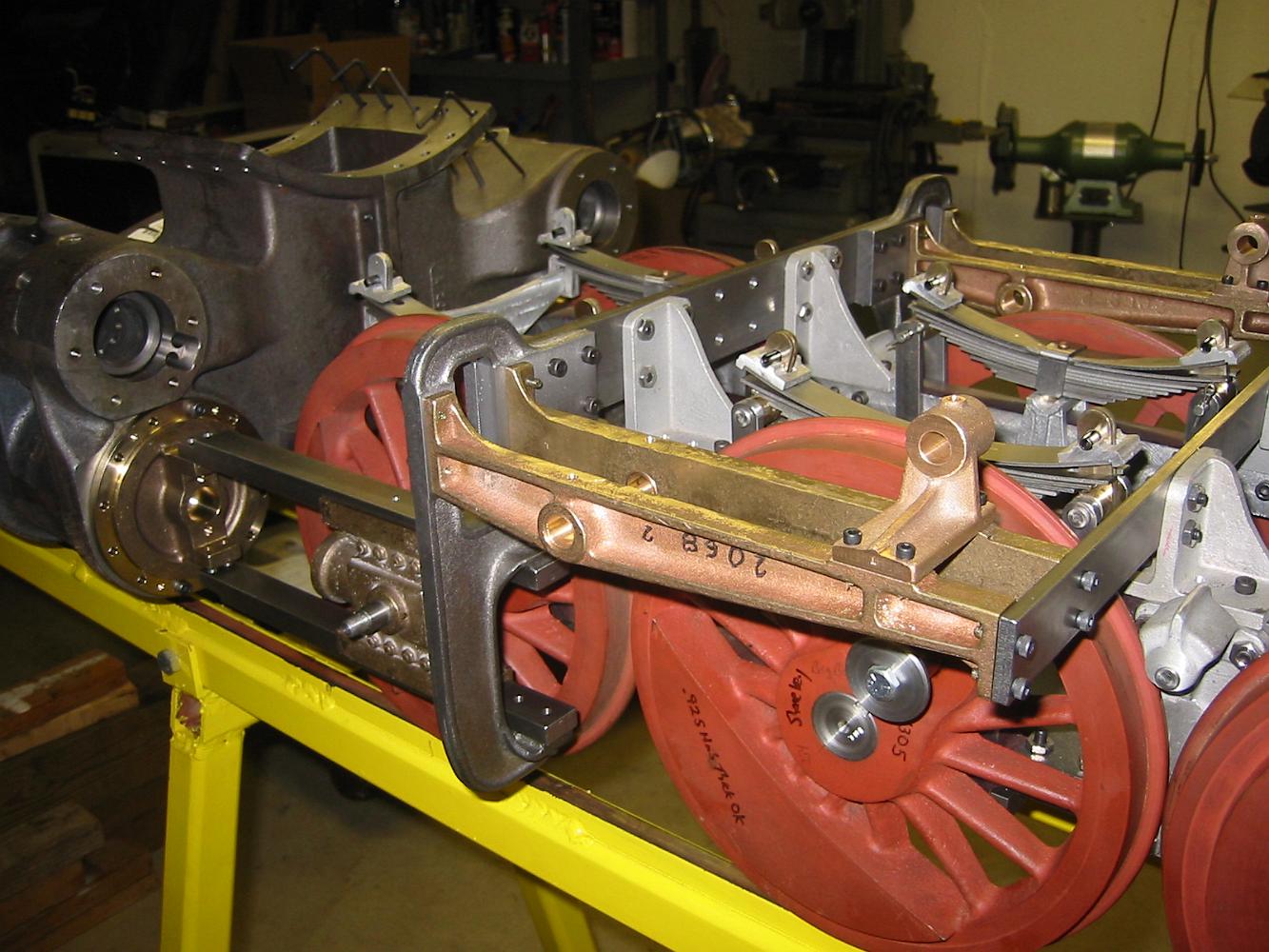

16-Oct-07 Here we are with section 9 bolted on. It's starting to look like a run-able chassie.
