ExhibitPlus MotionStructureAssemblyandProblems16Oct07 002

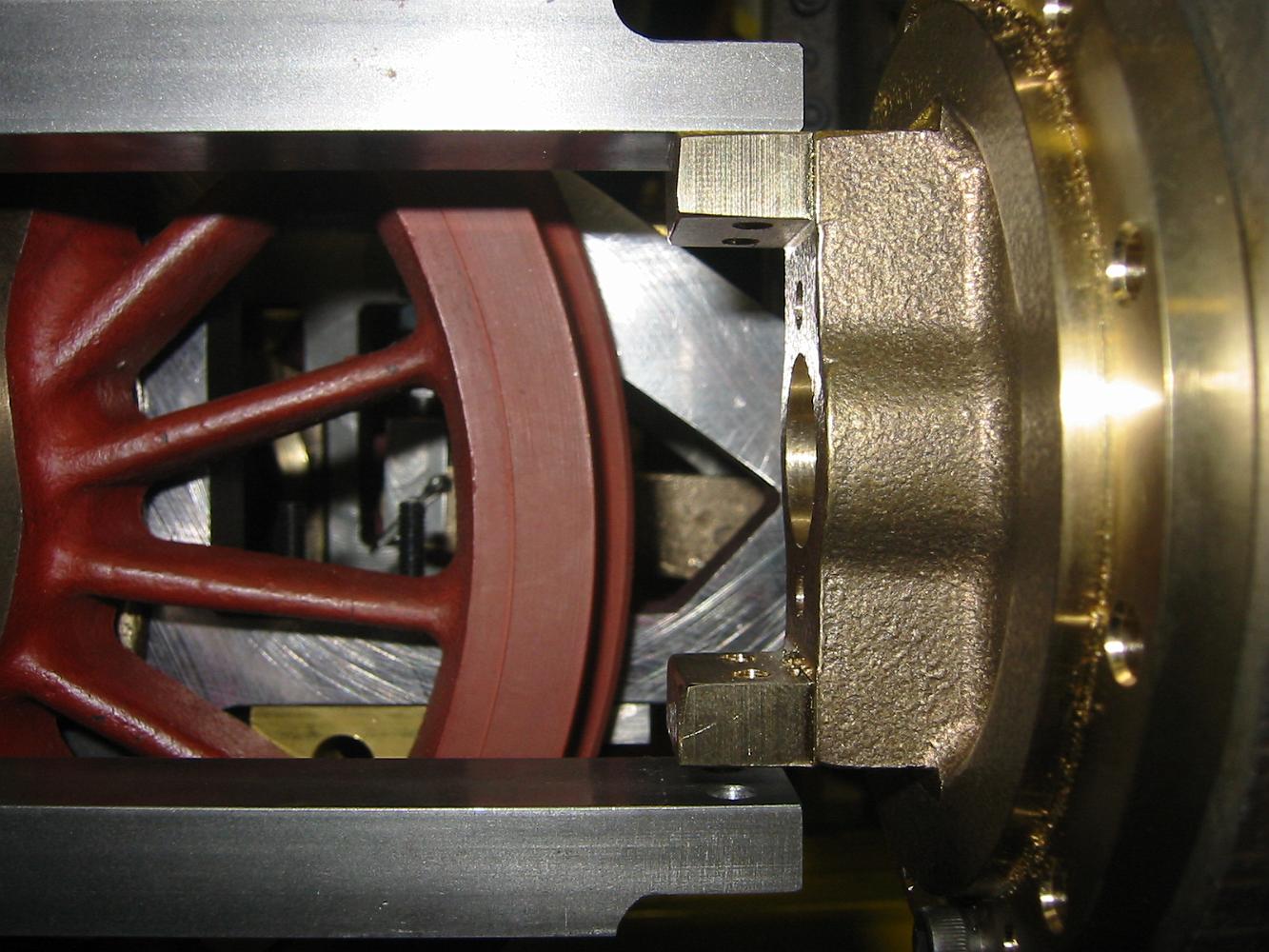

16-Oct-07 Hmm. There is supposed to be a 1/16th of an inch gap on the top and bottom crosshead guide bars. Why is there no gap on the top and 1/8th on the bottom?
