CrossheadGuideYoke10Oct07 007  [32 of 63]


Click to show/hide keyboard shortcut help
Keyboard shortcuts are active:

RIGHT arrow - next page
LEFT arrow - previous page
Page Up - index page
HOME - first page
END - last page
ESC,S,s - toggle start/stop slide show
ExhibitPlus CrossheadGuideYoke10Oct07 007

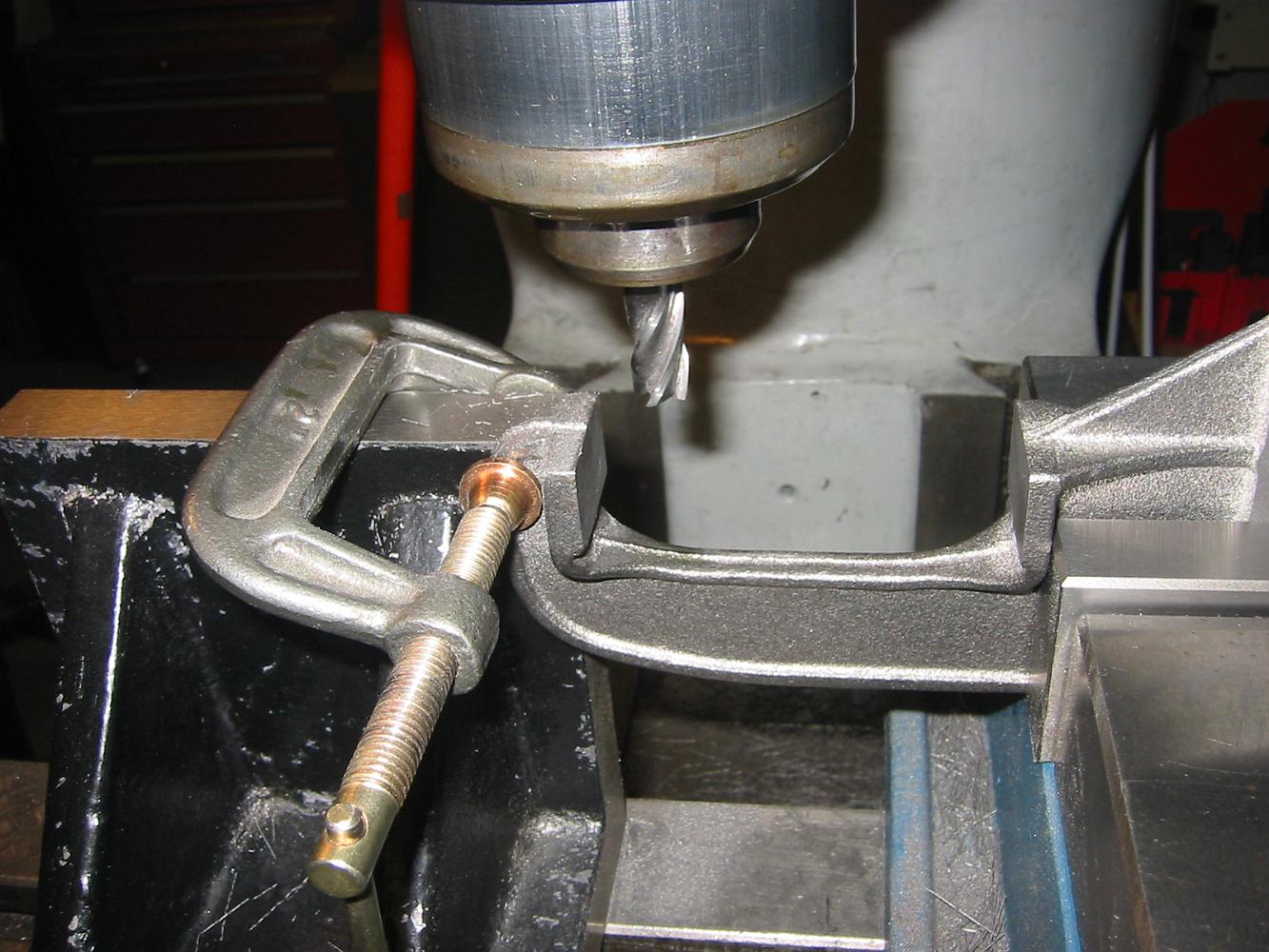

Lacking either the proper clamping tools, or imagination, the angle plate and c-clamp is used to secure the lower jaw and minimize the chatter the clamping setup induces.
