ExhibitPlus CrossheadGuideYoke10Oct07 001

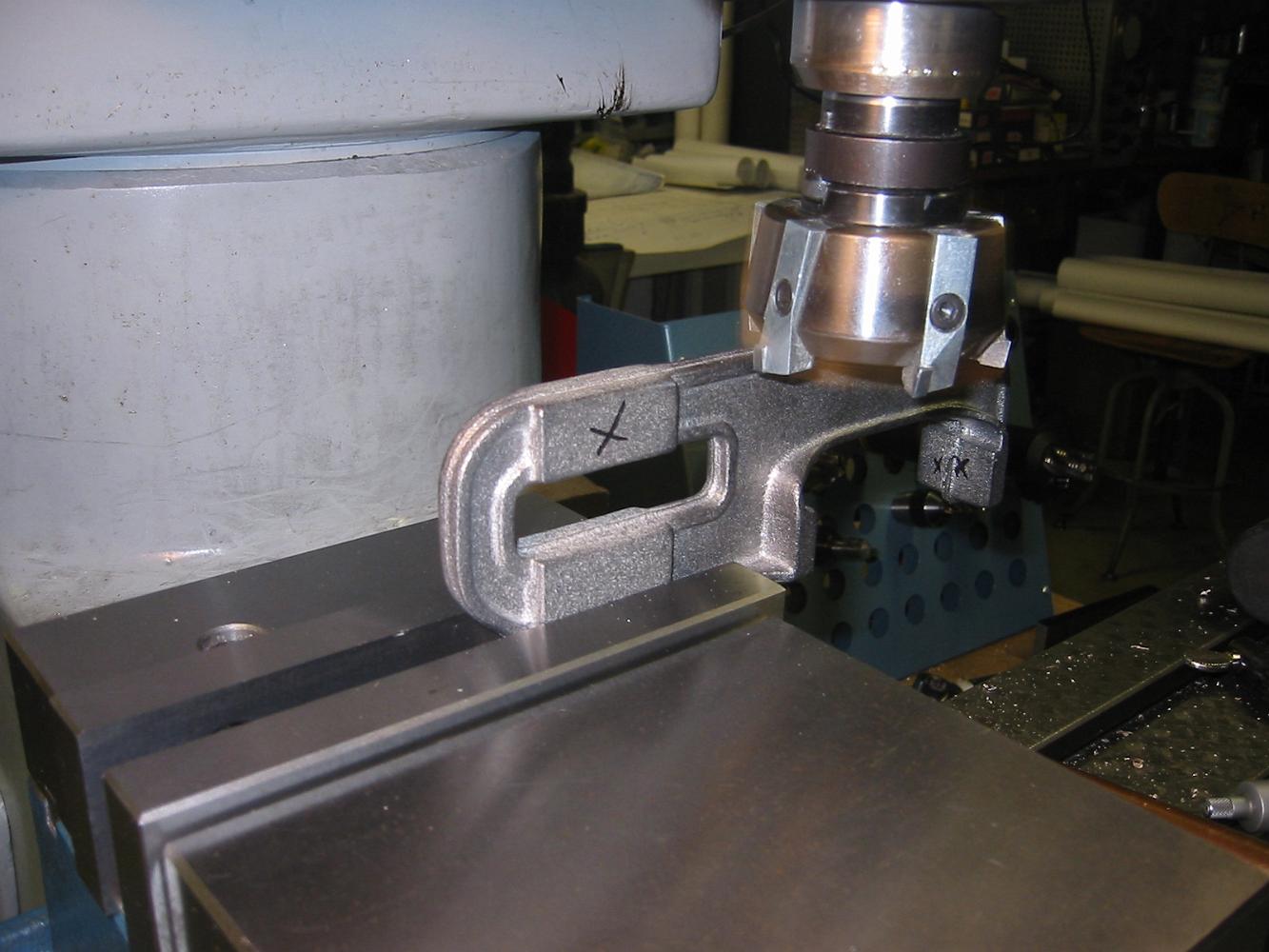

10-Oct-07 Work on the cast iron Crosshead Guide Yokes is begun, after much study of the drawing, the reference lines and the casting. The surfaces to be machined are marked with an 'X' to help keep from getting mixed up.
