ExhibitPlus MikadoTtruckTrailingArm8Aug07 002

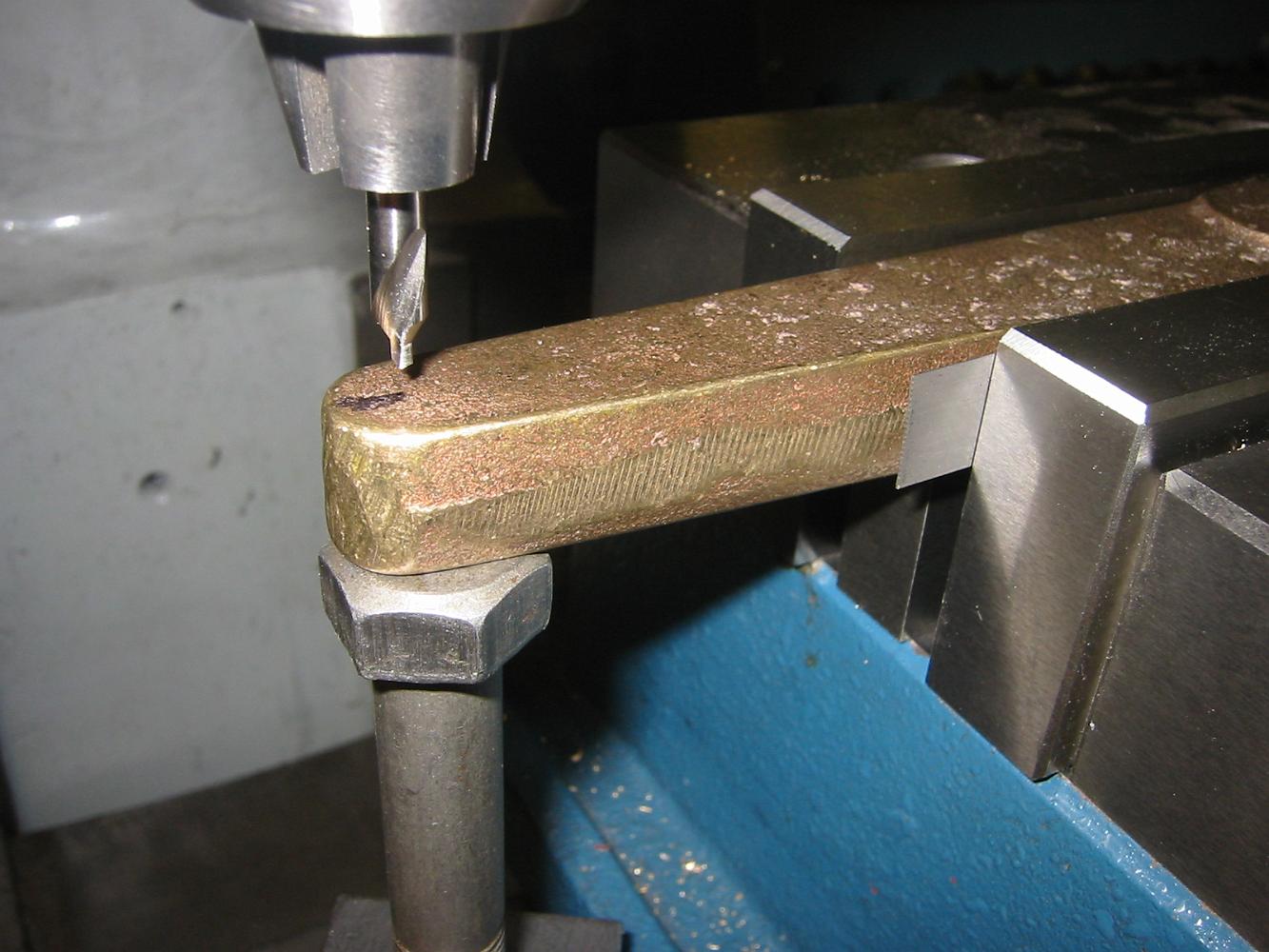

The casting had a slight twist in it, like all castings of long thing parts do, so we shimmed it in the vise to get the holes to line up where we wanted them relative to the centerline of the casting.
