ExhibitPlus MikadoTtruckTrailingArm1Aug07 002

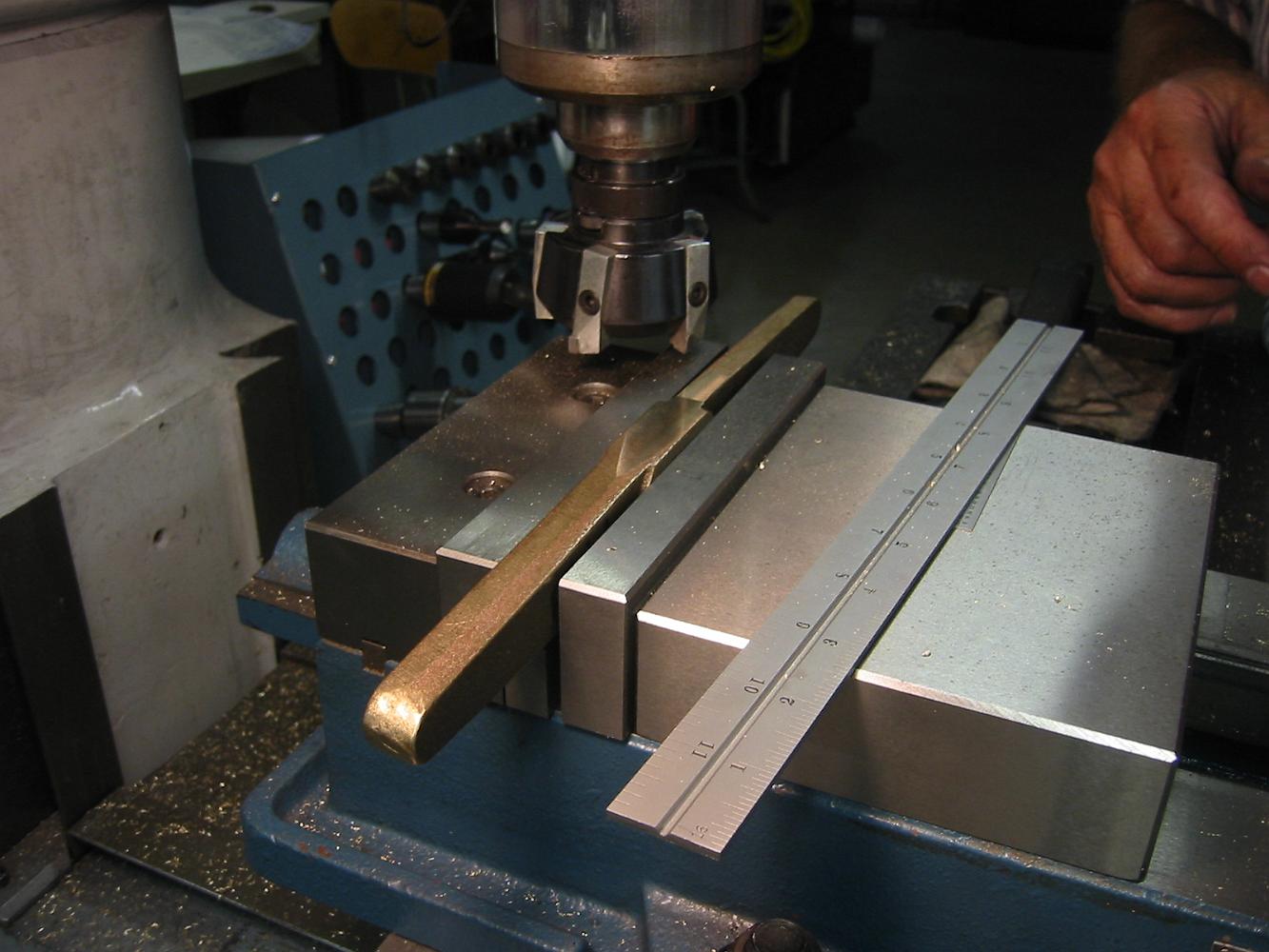

1-Aug-07 I was not convinced the original aluminum arms could really take the weight and wear, so I purchased replacement bronze arms from Bob Pederson at RailroadWarehouse, the supplier for the Heavy Mike castings and blueprints. The bronze arms are much more substancial.
