ExhibitPlus MikadoTrailingTruckWork7Feb07 001

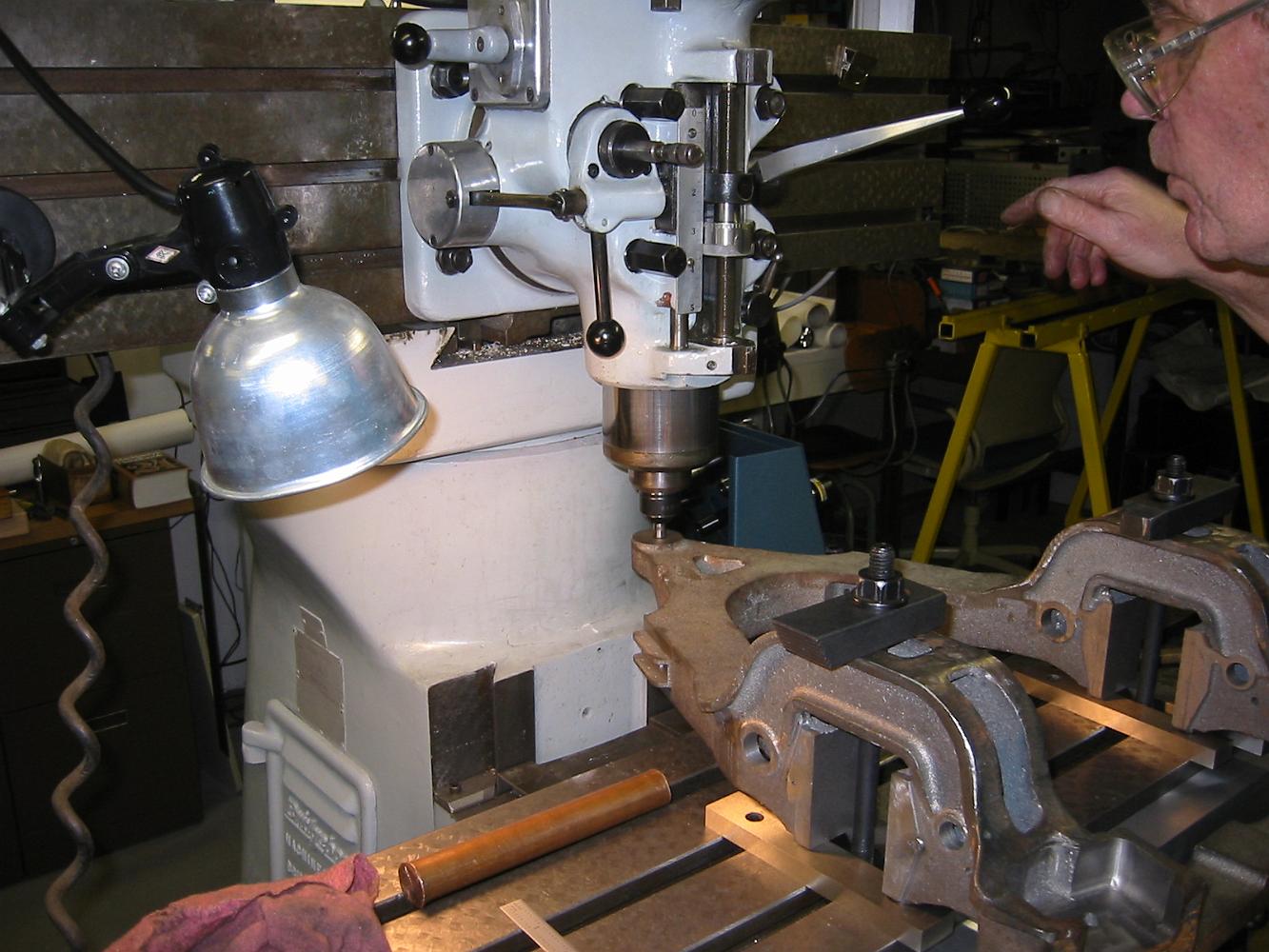

7-Feb-07. I've purchased some cup washers to use instead of the casing boss, so we machine the boss down and put a pocket in it for the washer.
