ExhibitPlus MikadoTrailingTruckWheels28June06 002

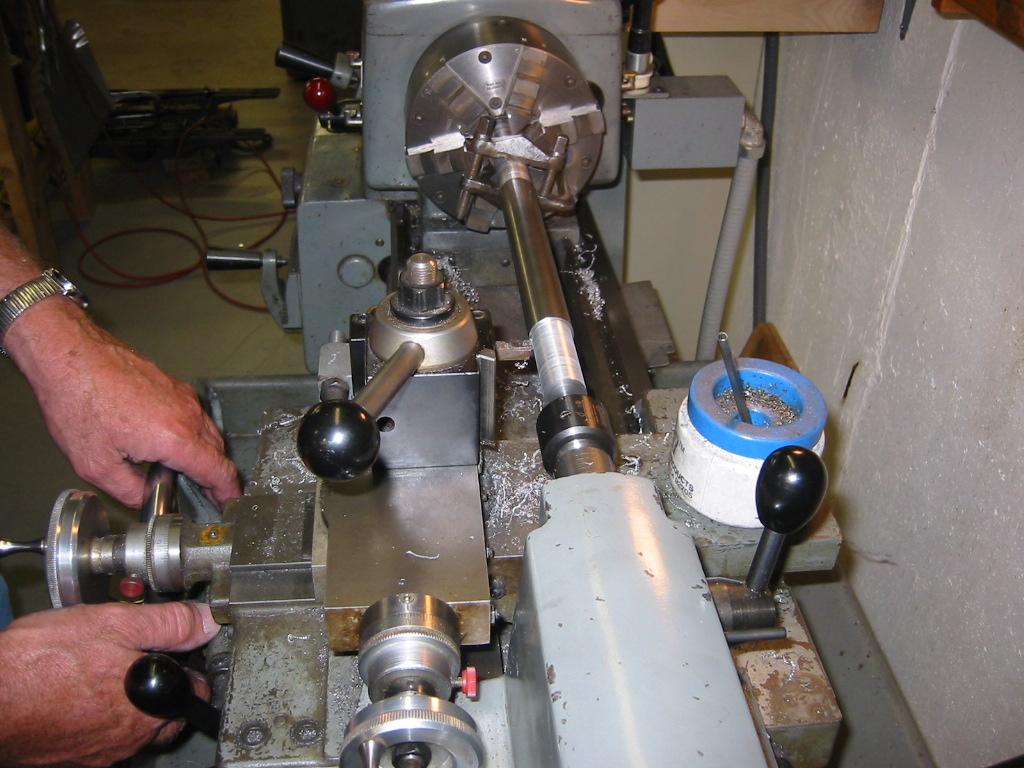

28-Jun-06 Turning the trailing truck axle between centers. Same process as we used for the main axles.
