ExhibitPlus MikadoTrailingTruckWheels14June06 003

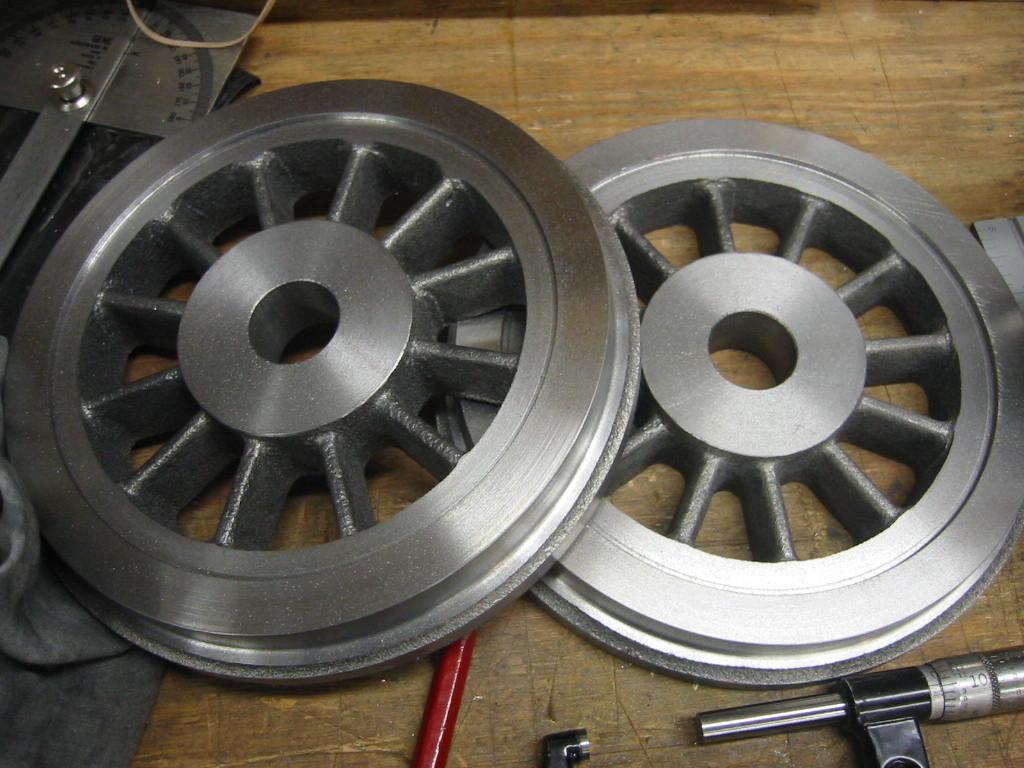

14-Jun-06 The two trailing truck wheels rough turned. We will finish turn the tread profile and finished thickness dimensions after they have been pressed on the axle.
