ExhibitPlus MikadoTrailingTruckWheels14June06 002

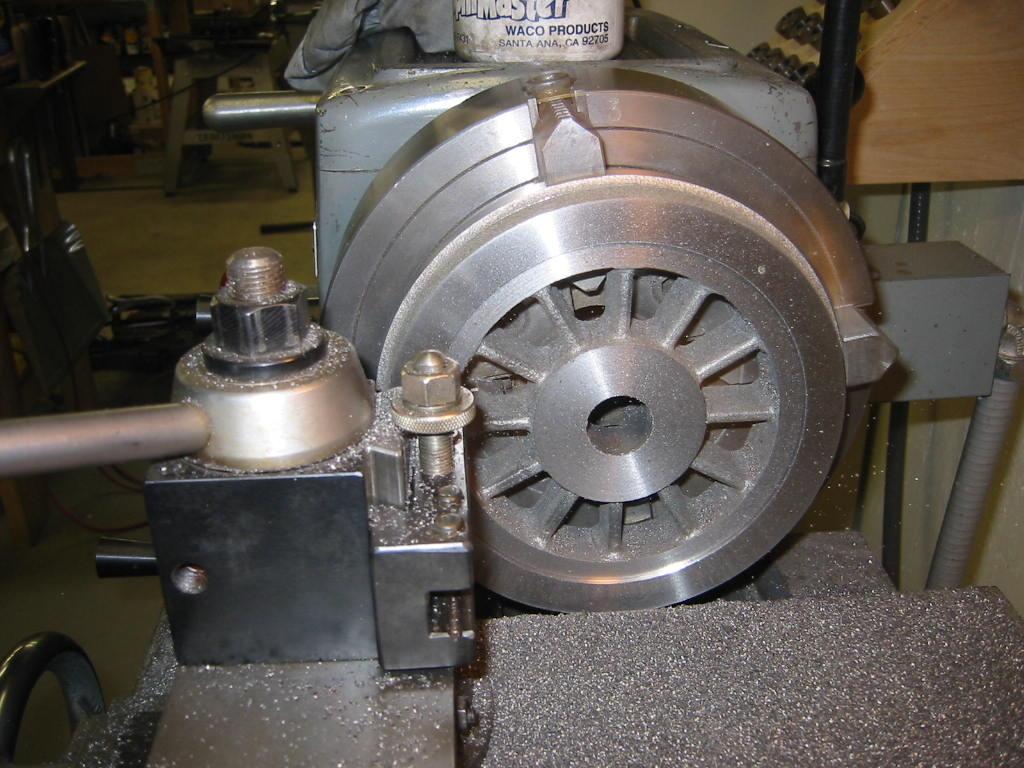

14-Jun-06 Turning the trailing truck wheels. The outer diameter has been rough turned, along with the hub and tire thickness. We add the decorative relief to simulate a shrunk-fit steel tire on a spoked hub like the prints call for. I'm happy to say the cast iron is good quality with no voids or hard spots. It's just very dirty.
