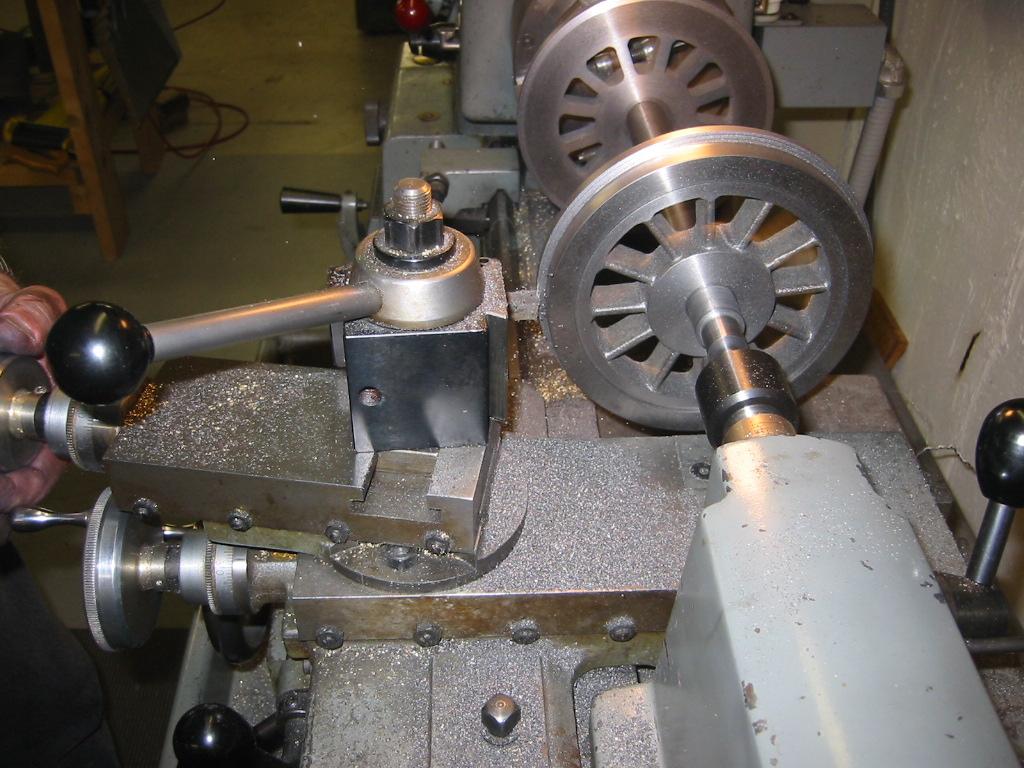

12-July-06 Turning the tread profile in the trailing truck wheels. This challenged machinist and machine, since this light-duty lathe is not really rigid enough to turn an 1/8" radius form tool without chattering. Bill got the job done, but I still have some practice to do before I can match his work on this step.
