ExhibitPlus MikadoTrailingTruckWheels12July06 001

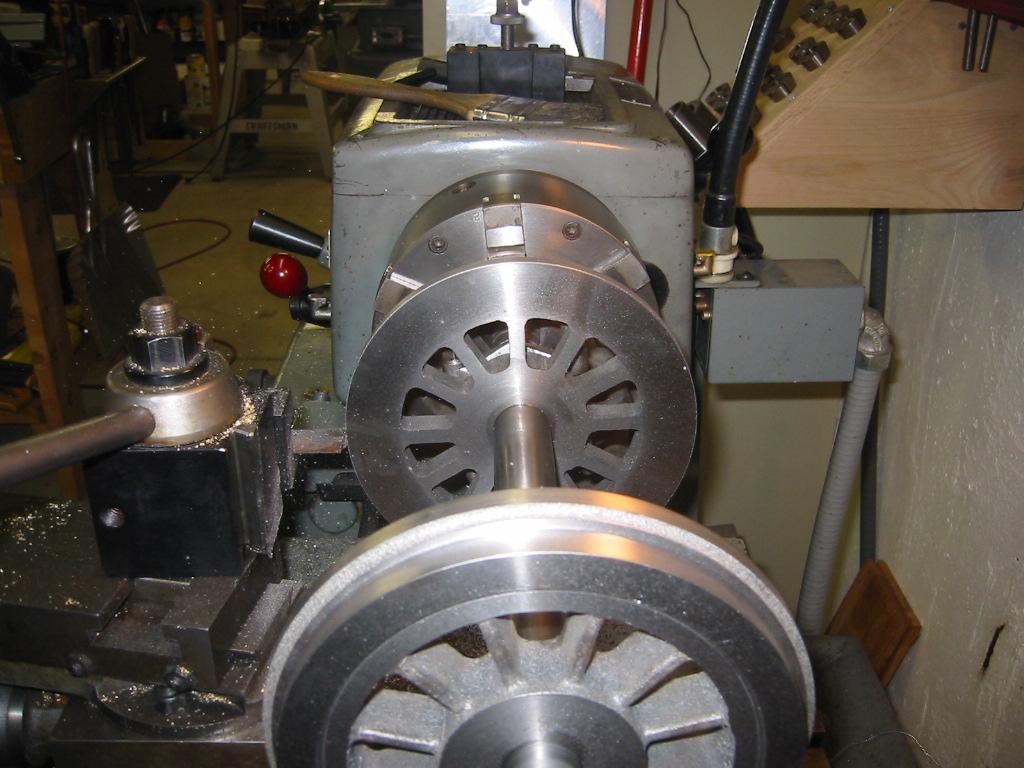

12-Jul-06 Preparing to turn the finished tread profile on the trailing trucks. Earlier that weekend I used the hydraulic press at Joel's shop and pressed the wheels onto the axle.
