ExhibitPlus MikadoTrailingTruckTestFit30Jan07 004

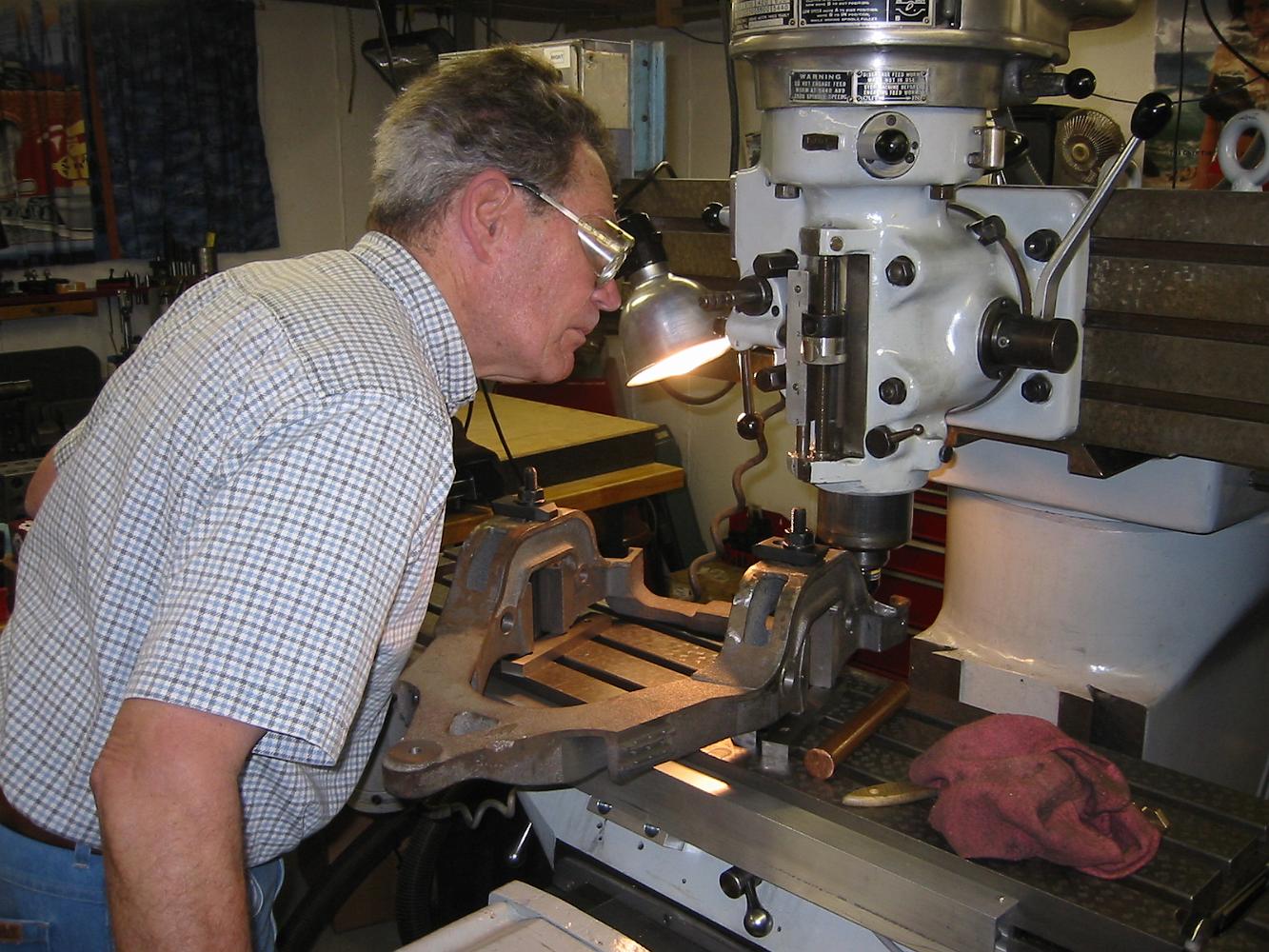

30-Jan-07 Milling the rocker pad pockets out so the rockers will line up and have enough freedom of motion as required by print. The raw casting is a little bit wide of print.
