Neidrauer Adventures Photo Album and Blog » Building a Live Steam Locomotive - the Mikado Project » Section 7 - Trailing Truck
IMG_0046 MikadoTrailingTruckEquilizerArm5May06 MikadoTrailingTruckAxleBoxes10May06 001 MikadoTrailingTruckAxleBoxes10May06 002 MikadoTrailingTruckAxleBoxes10May06 004 MikadoTrailingTruckAxleBoxes10May06 006 MikadoTrailingTruckAxleBoxes17May06 002 MikadoTrailingTruckWheels14June06 001 MikadoTrailingTruckWheels14June06 002 MikadoTrailingTruckWheels14June06 003 MikadoTrailingTruckWheels14June06 004 MikadoTrailingTruckWheels14June06 005 MikadoTrailingTruckWheels28June06 002 MikadoTrailingTruckWheels28June06 003 MikadoTrailingTruckRockers5Jul06 002 MikadoTrailingTruckRockers11Jul06 001 MikadoTrailingTruckRockers11Jul06 002 MikadoTrailingTruckRockers11Jul06 003 MikadoTrailingTruckWheels12July06 001 MikadoTrailingTruckWheels12July06 002 MikadoTrailingTruckWheels12July06 003 MikadoTTRockernGuide6Dec06 002 MikadoTTRockernGuide6Dec06 003 MikadoTTRockernGuide6Dec06 004 MikadoTTRockernGuidesFinished9Dec06 001 MikadoTTRockernGuidesFinished9Dec06 003 MikadoTrailingTruckTestFit30Jan07 001 MikadoTrailingTruckTestFit30Jan07 002 MikadoTrailingTruckTestFit30Jan07 004 MikadoTrailingTruckTestFit30Jan07 005 MikadoTrailingTruckTestFit30Jan07 006 MikadoTrailingTruckWork7Feb07 001 MikadoTrailingTruckModification14Feb07 001 MikadoTrailingTruckModification14Feb07 002 MikadoTrailingTruckModification14Feb07 003 MikadoTrailingTruckModification14Feb07 004 MikadoTrailingTruckModification14Feb07 005 MikadoTtruckTrailingArm1Aug07 001 MikadoTtruckTrailingArm1Aug07 002 MikadoTtruckTrailingArm8Aug07 001 MikadoTtruckTrailingArm8Aug07 002 MikadoTtruckTrailingArm8Aug07 003 MikadoTtruckTrailingArm8Aug07 005
First page Previous page Index page Next page Last page
MikadoTrailingTruckRockers11Jul06 001  [16 of 43]


Click to show/hide keyboard shortcut help
Keyboard shortcuts are active:

RIGHT arrow - next page
LEFT arrow - previous page
Page Up - index page
HOME - first page
END - last page
ESC,S,s - toggle start/stop slide show
ExhibitPlus MikadoTrailingTruckRockers11Jul06 001

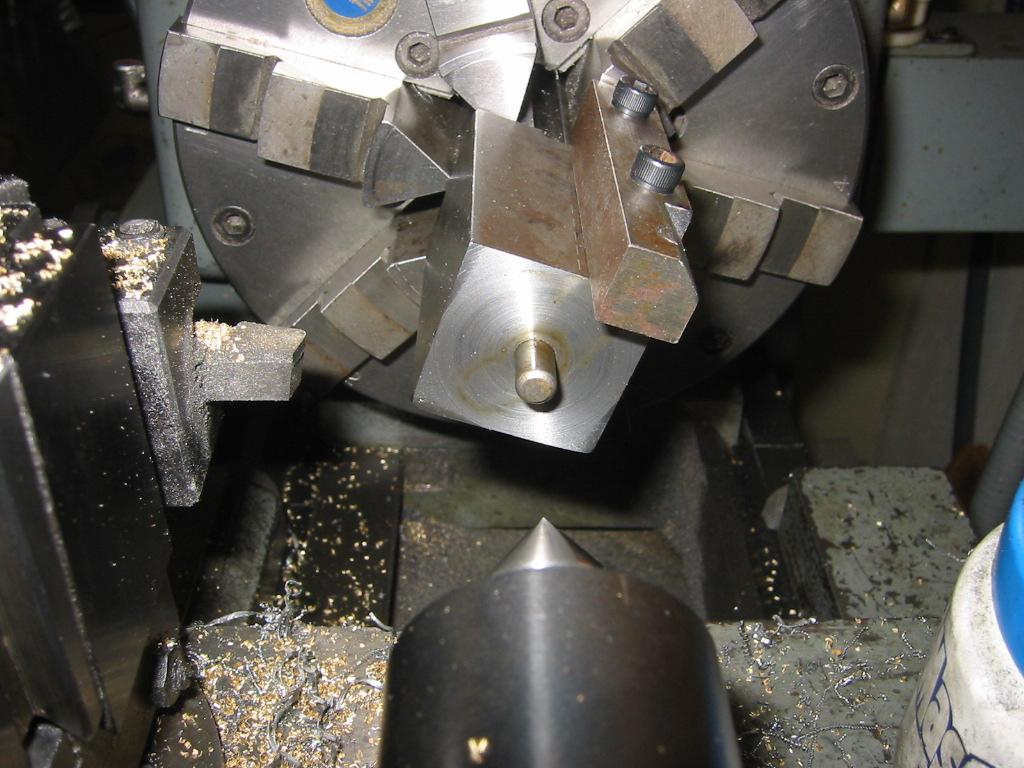

11-Jul-06 The arbor for turning the trailing truck rockers mounted in the six-jaw chuck. The chuck jaws are on the round portion of the mandrel. The quarter inch square stock is bolted onto the mandrel to drive the rockers, like a dog is used during turning operations. Bill pointed out I bolted it on up-side down, the notch in the stock is supposed to provide clearance against the casting.
