ExhibitPlus MikadoTrailingTruckAxleBoxes17May06 002

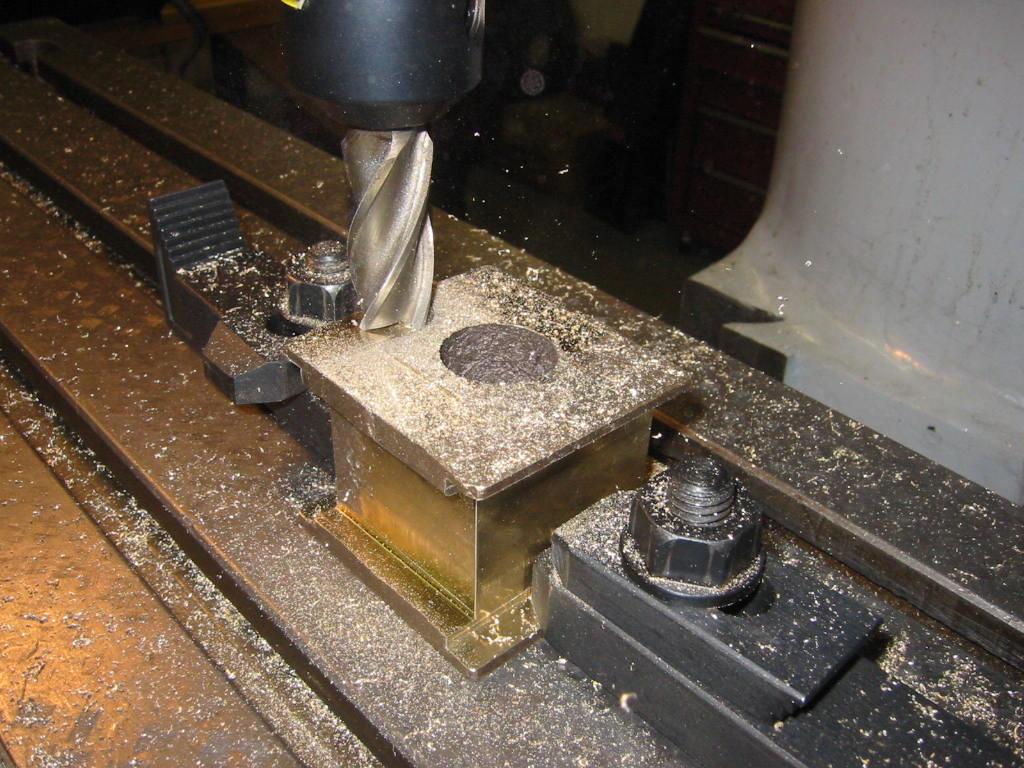

17-May-06 Facing the front of the trailing truck axle box. A few tapped holes to mount the decorative box cover and we are done.
