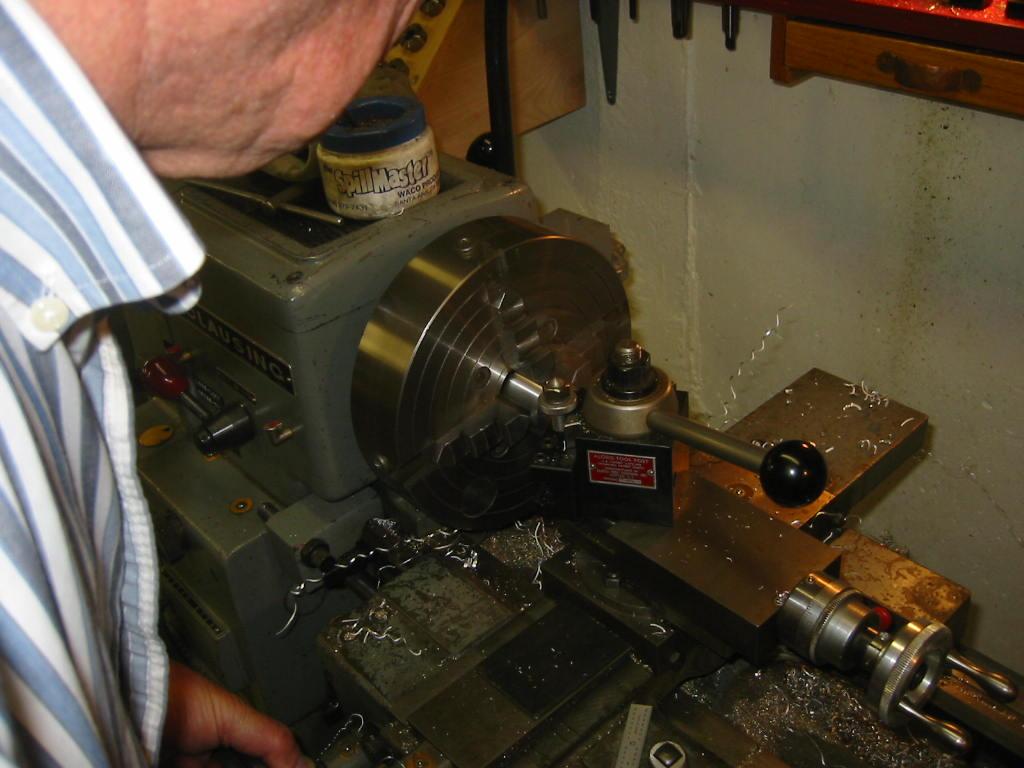

10-May-06 Another familiar operation: turning a mandrel to mount on the angle plate to machine the axle boxes.
