ExhibitPlus MikadoTrailingTruckAxleBoxes10May06 001

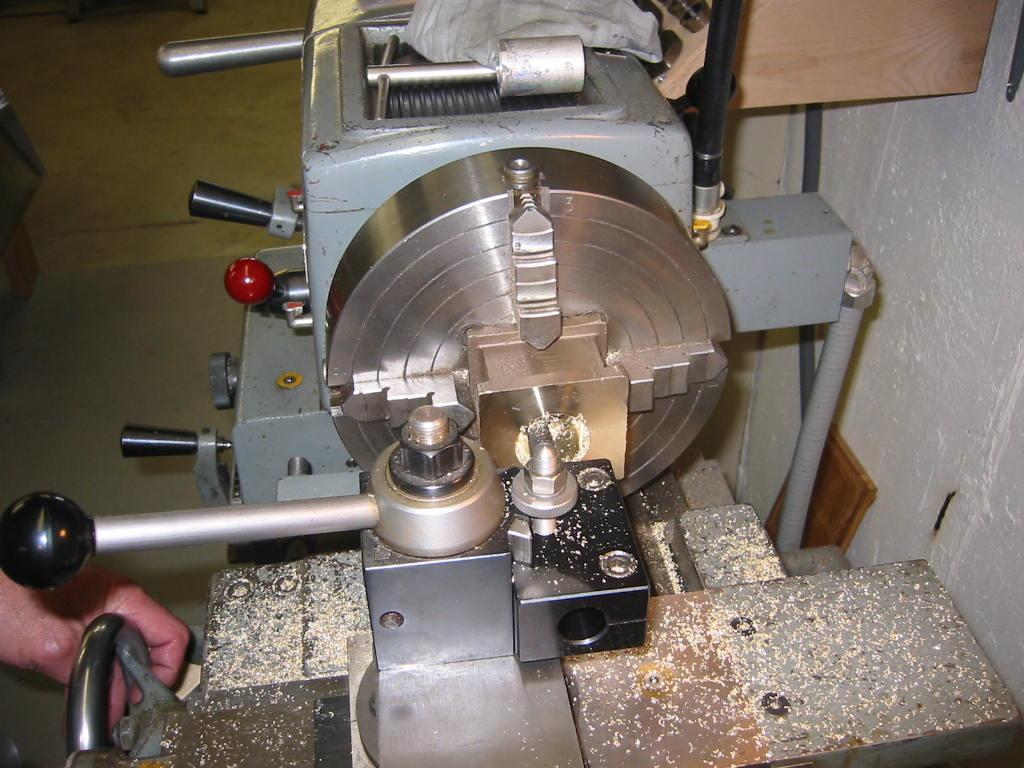

10-May-06 Here is a familiar process: rough boring the trailing truck axle boxes, after completing a truing cut on the face.
