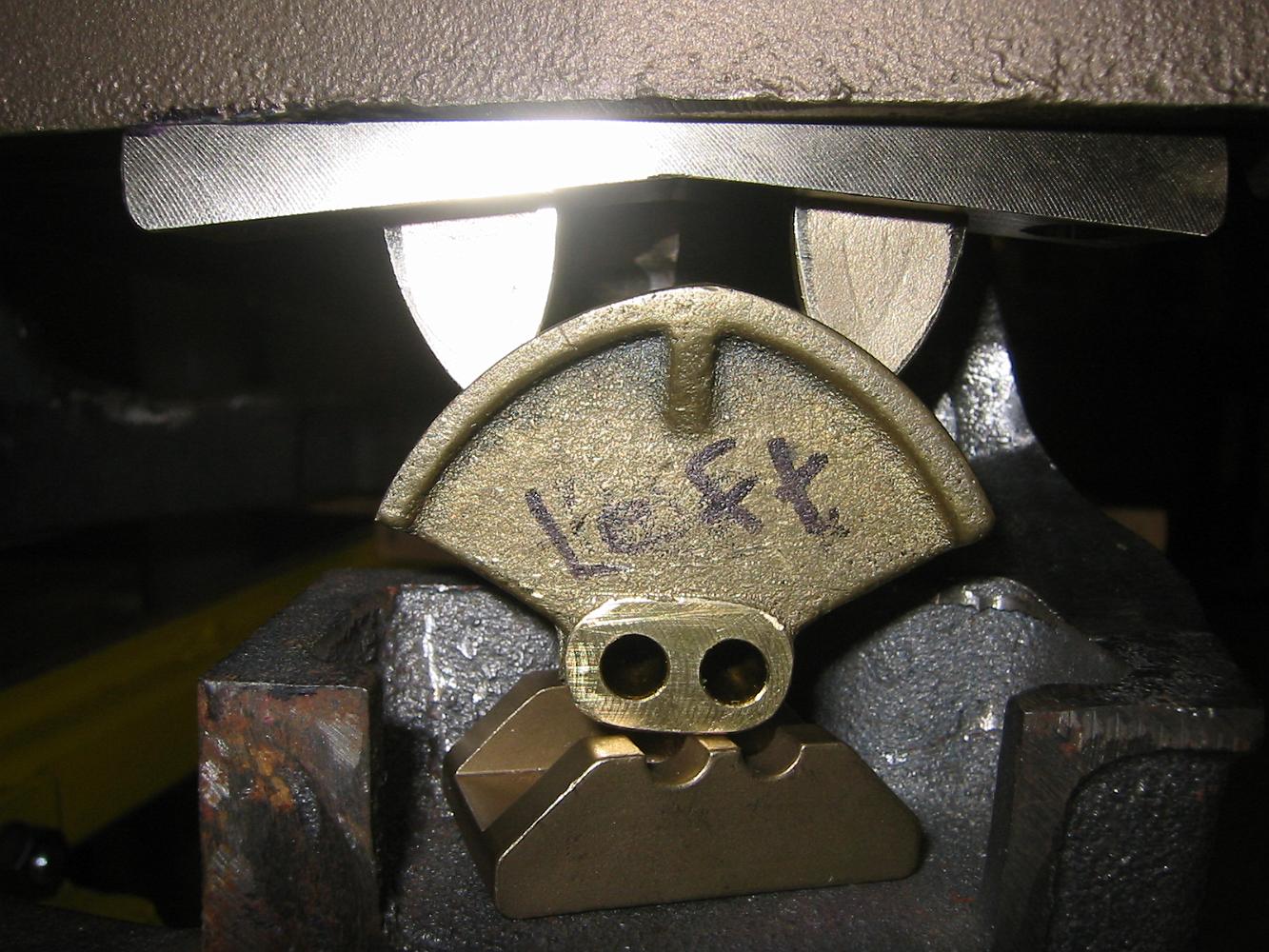

6-Dec-06 Another part to bolt on! That always feels good. The rocker guide (top) has been bolted to the tail cradle, the rocker positioned in the guide and the rocker base (unmachined) placed in the trailing truck frame to check alignment. Bit of a problem, the base does not line up with the rocker. The truck frame came out of the foundry wider than called for by print, so we will have to make some adjustments....
