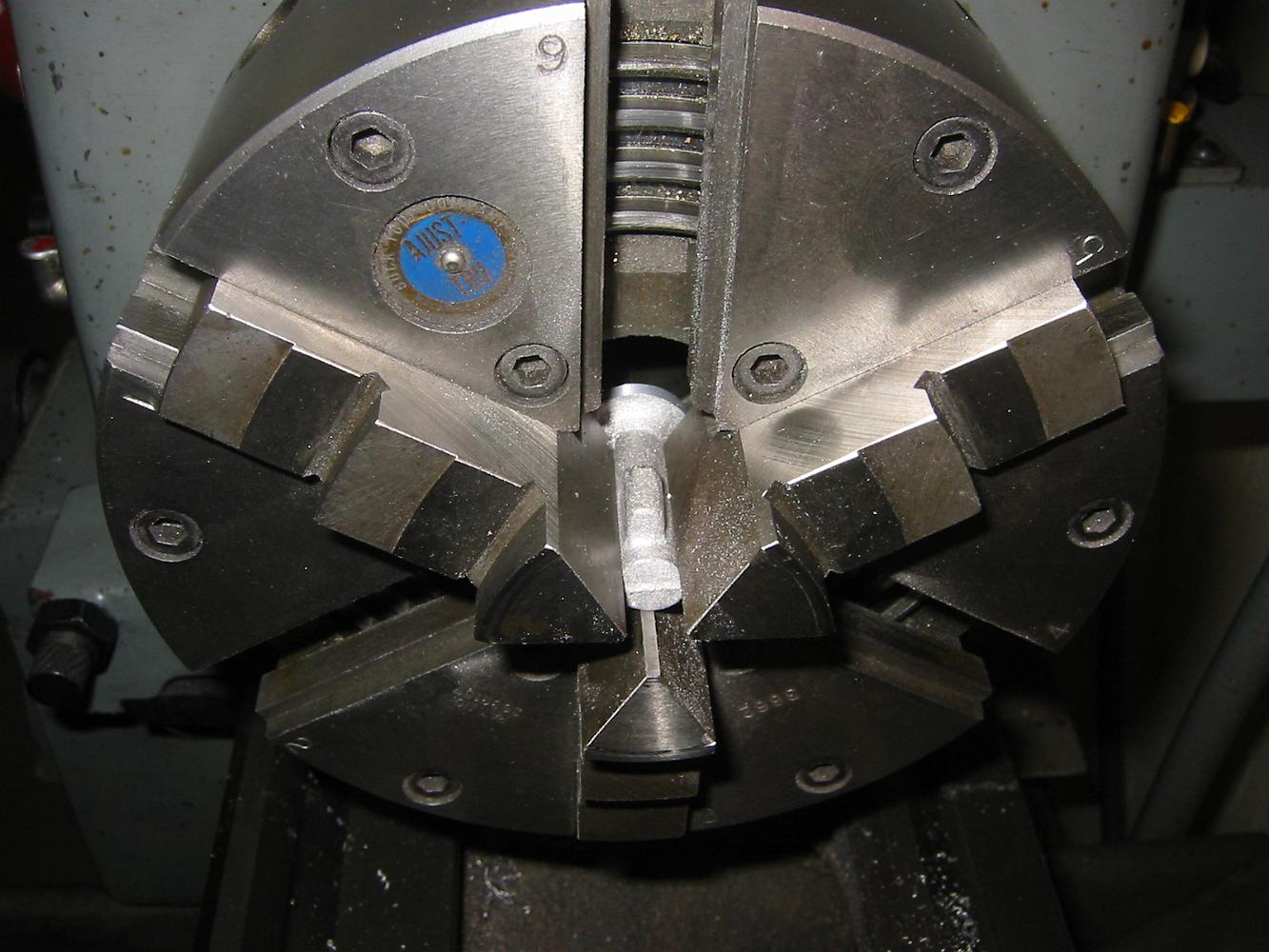

1-Aug-07 The Flagstand held by the back of the chuck jaws so we can drill and counterbore. This setup allowed us to keep the same chucking as when we turned the bottom (now inside the chuck) and maintain some sense of centering the part.
