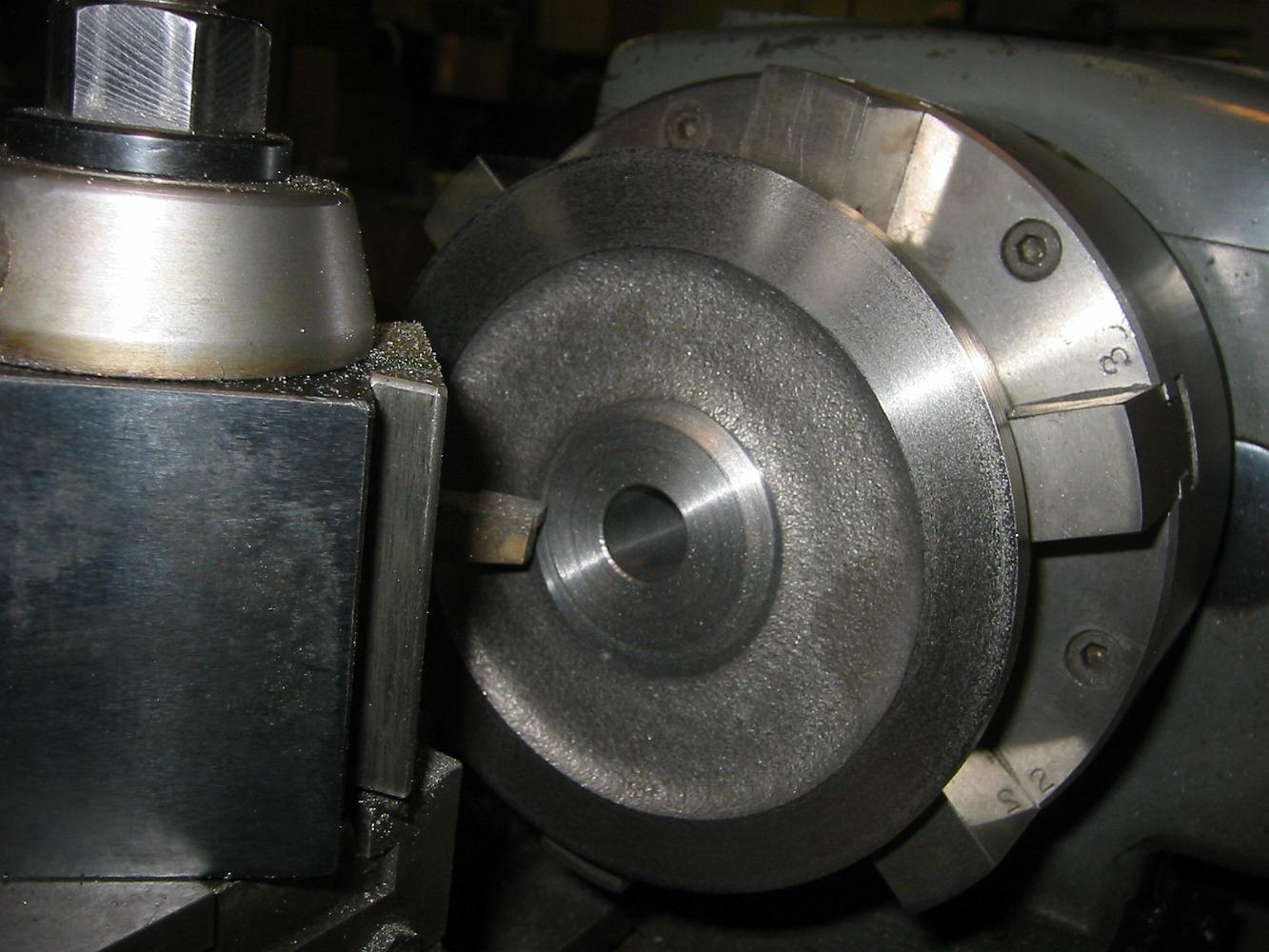

finish facing the backside. You can see the casting on the back is offset from the front, which because of the first chucking setup runs true.
