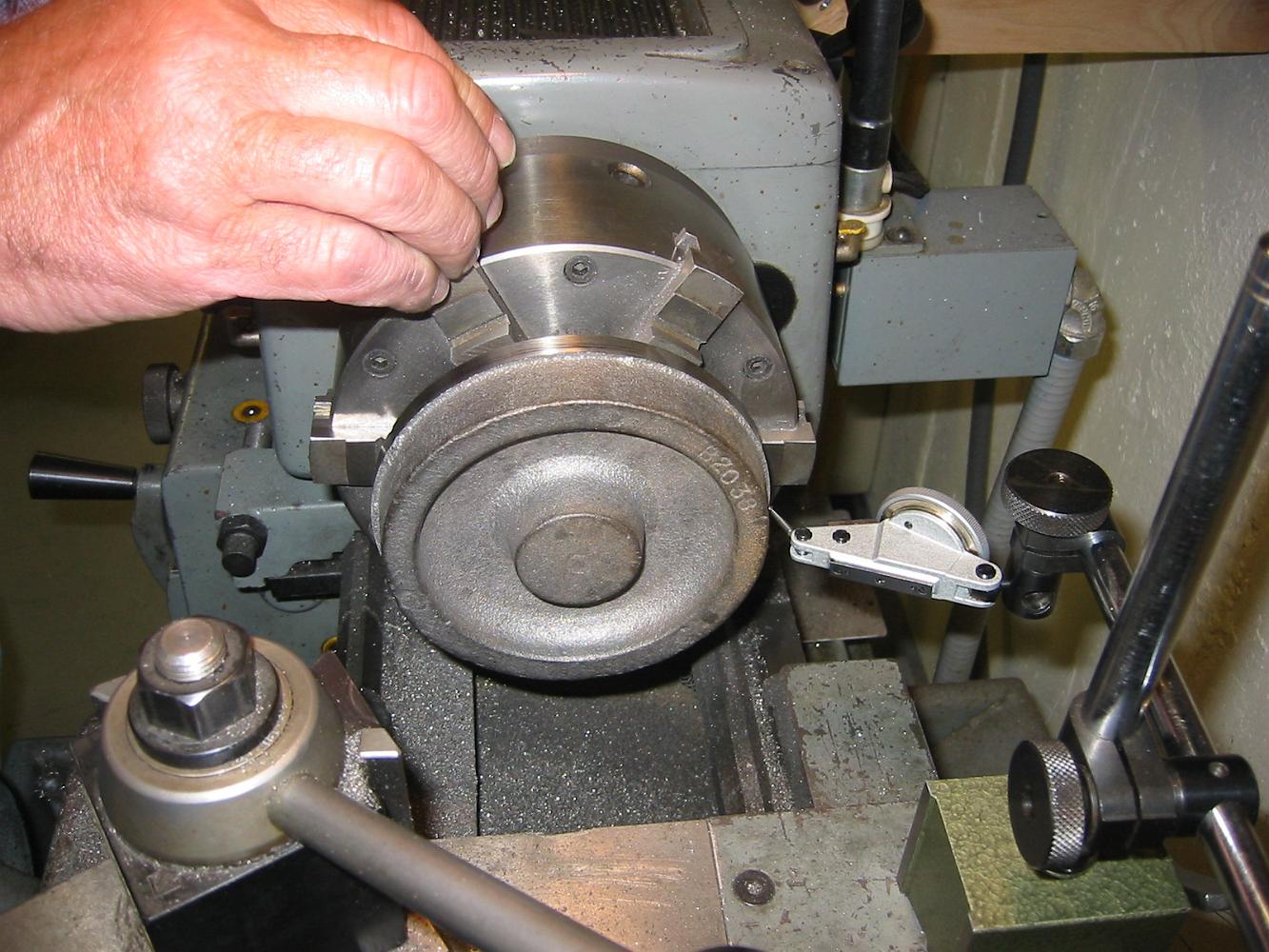

Checking the runout on the second chucking. Since this is a 'adjust-tru' six-jaw chuck, we can center the wheel within a couple of thou.
