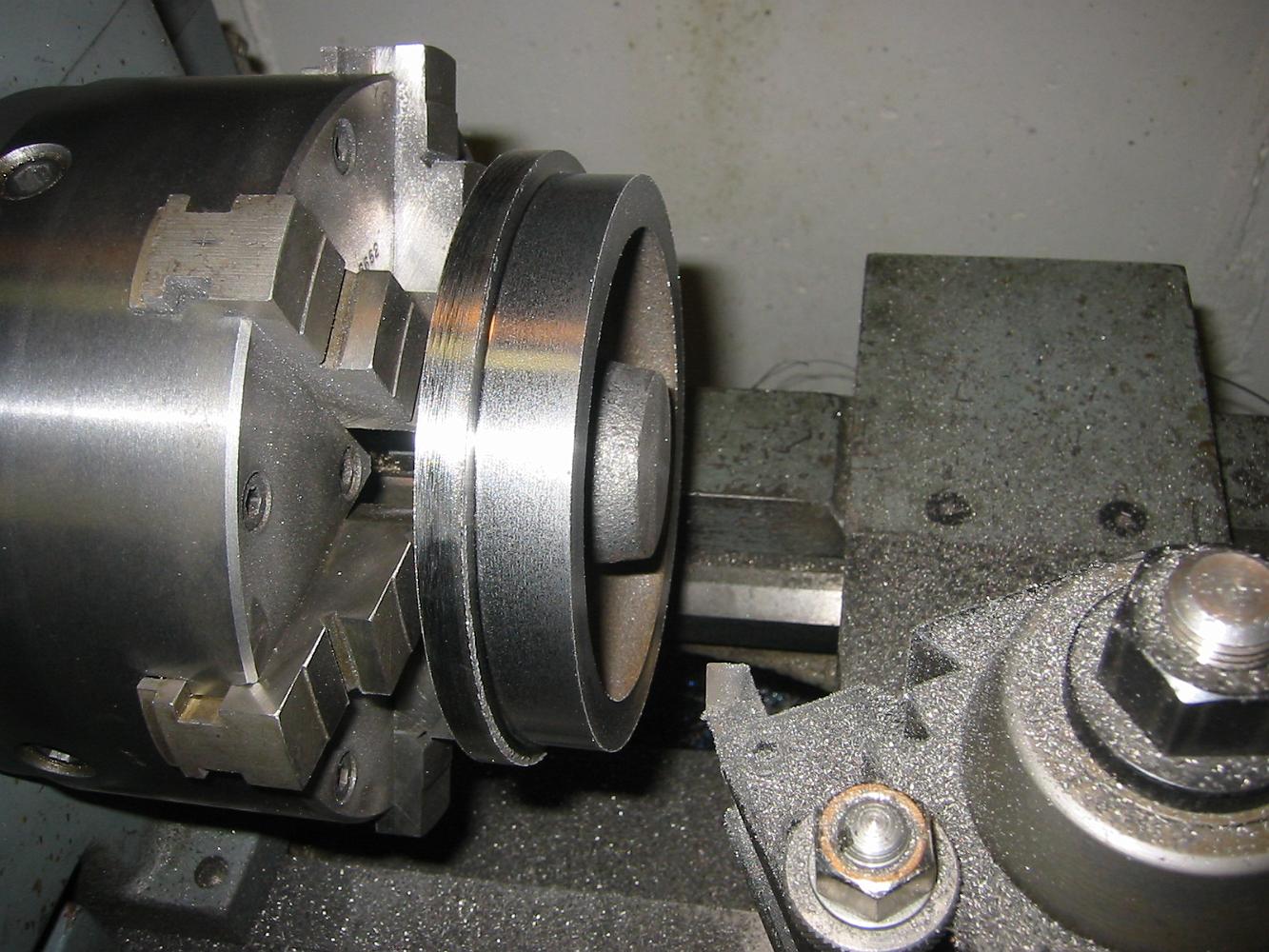

16-May-07 Steps to machine the pilot wheels. This is the second chucking. In the first chucking the front of the wheel was held and the back rough turned. Most importantly, the boss on the back was turned for chucking in this second step.
