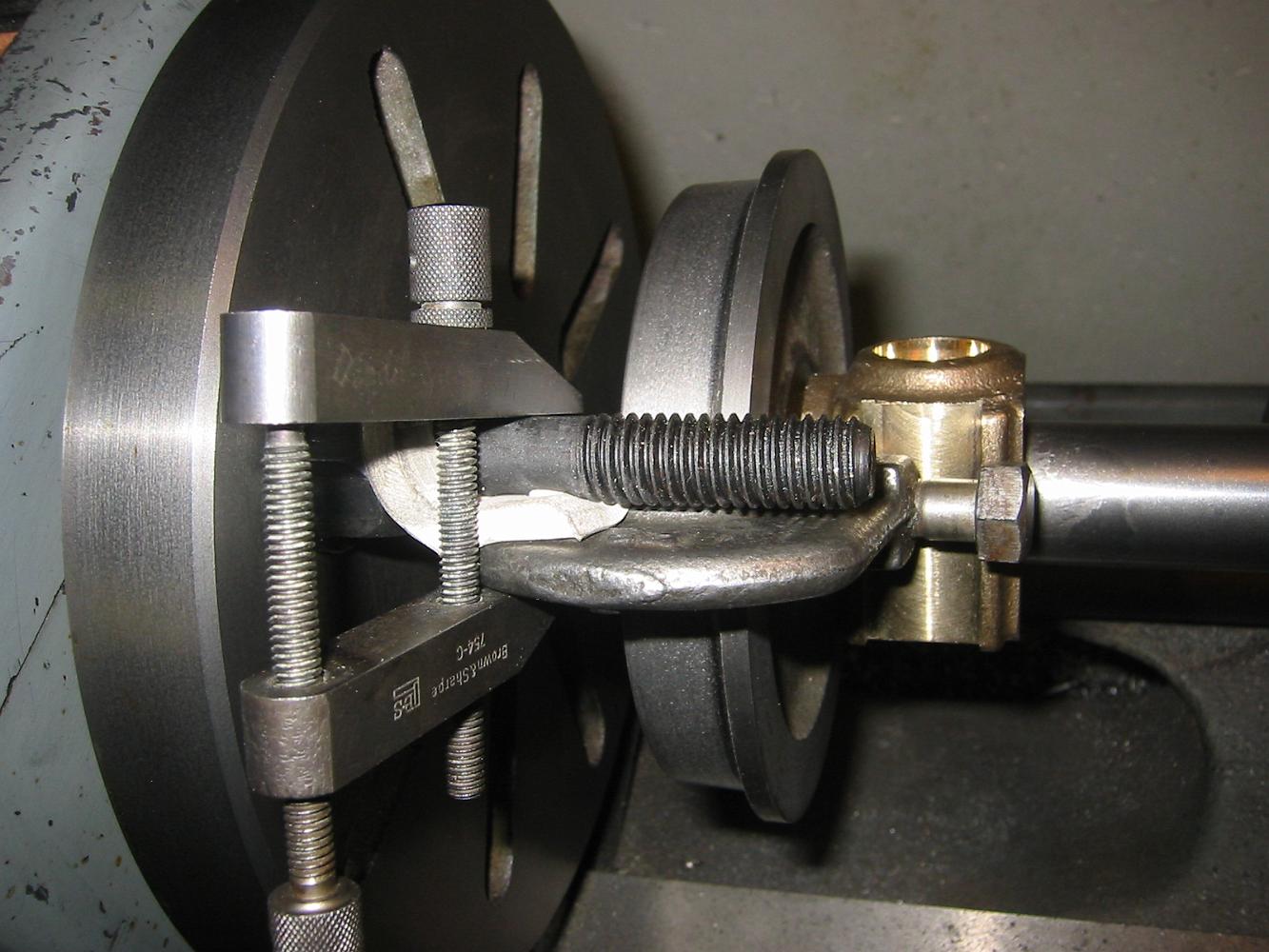

27-June-07 Anti-chatter setup we used when turning the wheel profile. The bolt is actually the driving dog stud, the white is a piece of rubber squeezed with the machinist clamp against the clamp on the wheel. The rubber was one of two shipping blocks in a new ceiling fan to keep the motor from moving until installation. Looks unsafe, but we were turning in back gear the slowest my lathe could go.
