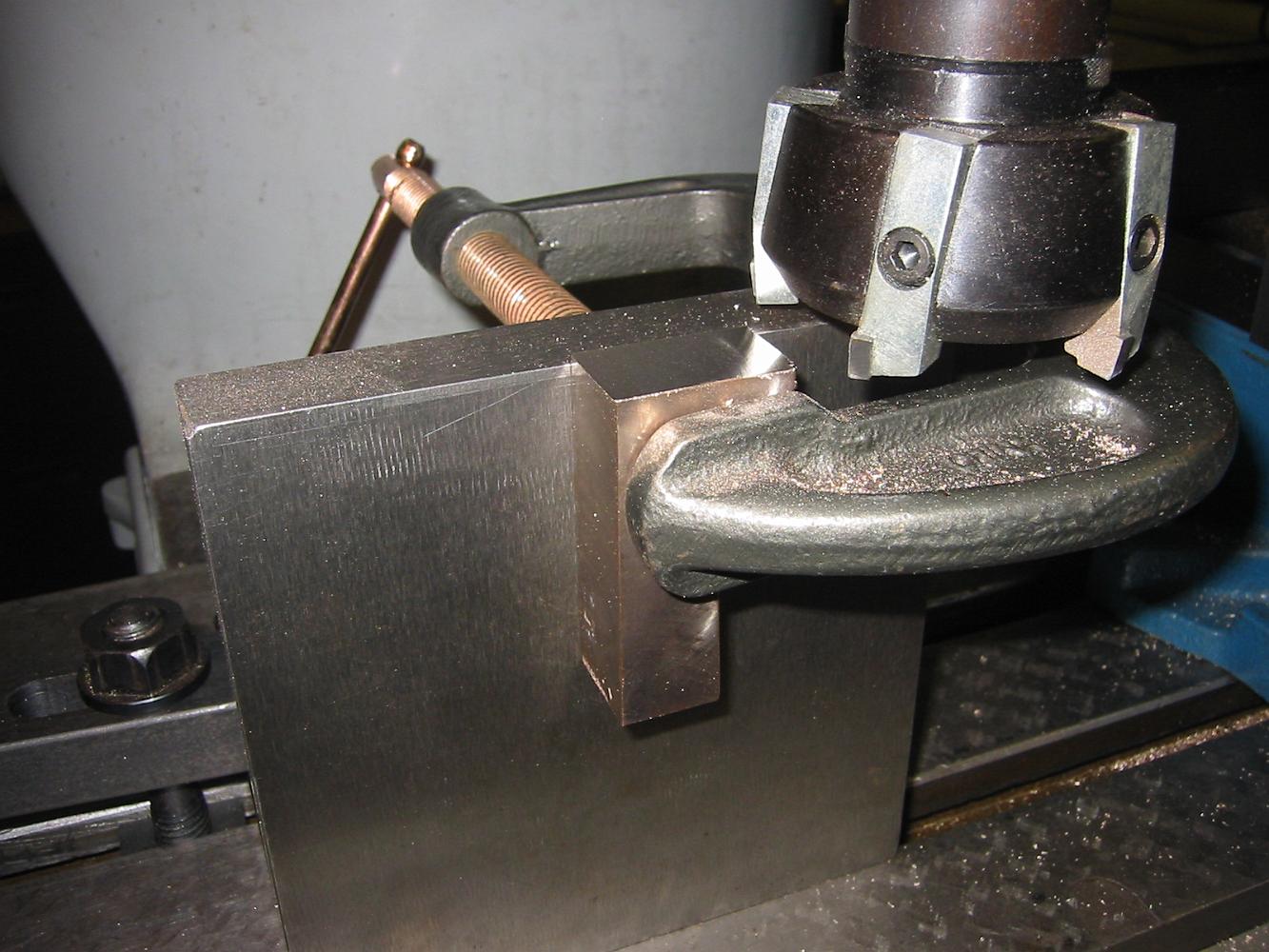

A quick alignment with the precision square and the top is skimmed until we have a machined surface. The casting does not allow a lot of material to be removed because the rough size is close to the finished size called for on the print.
