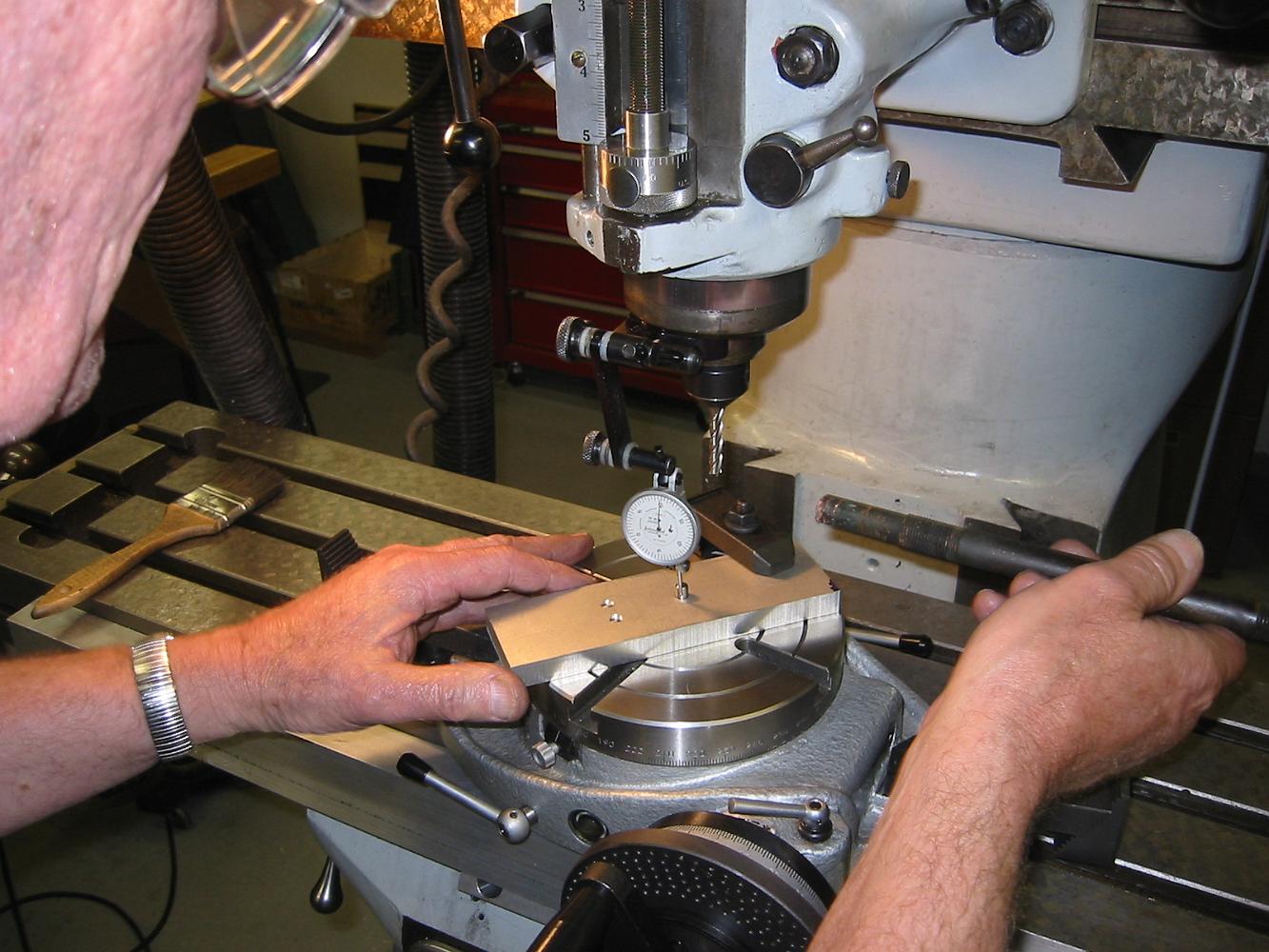

18-Apr-07 To finish the heart links, we have to mill a 5/16" arc inside each side of the link. Out comes the rotary table and the aluminum piece with the dowel pin is re-used. Here Bill moves the piece around until the dial indicator reads zero (okay, three tenths) all around when we rotate the table.
