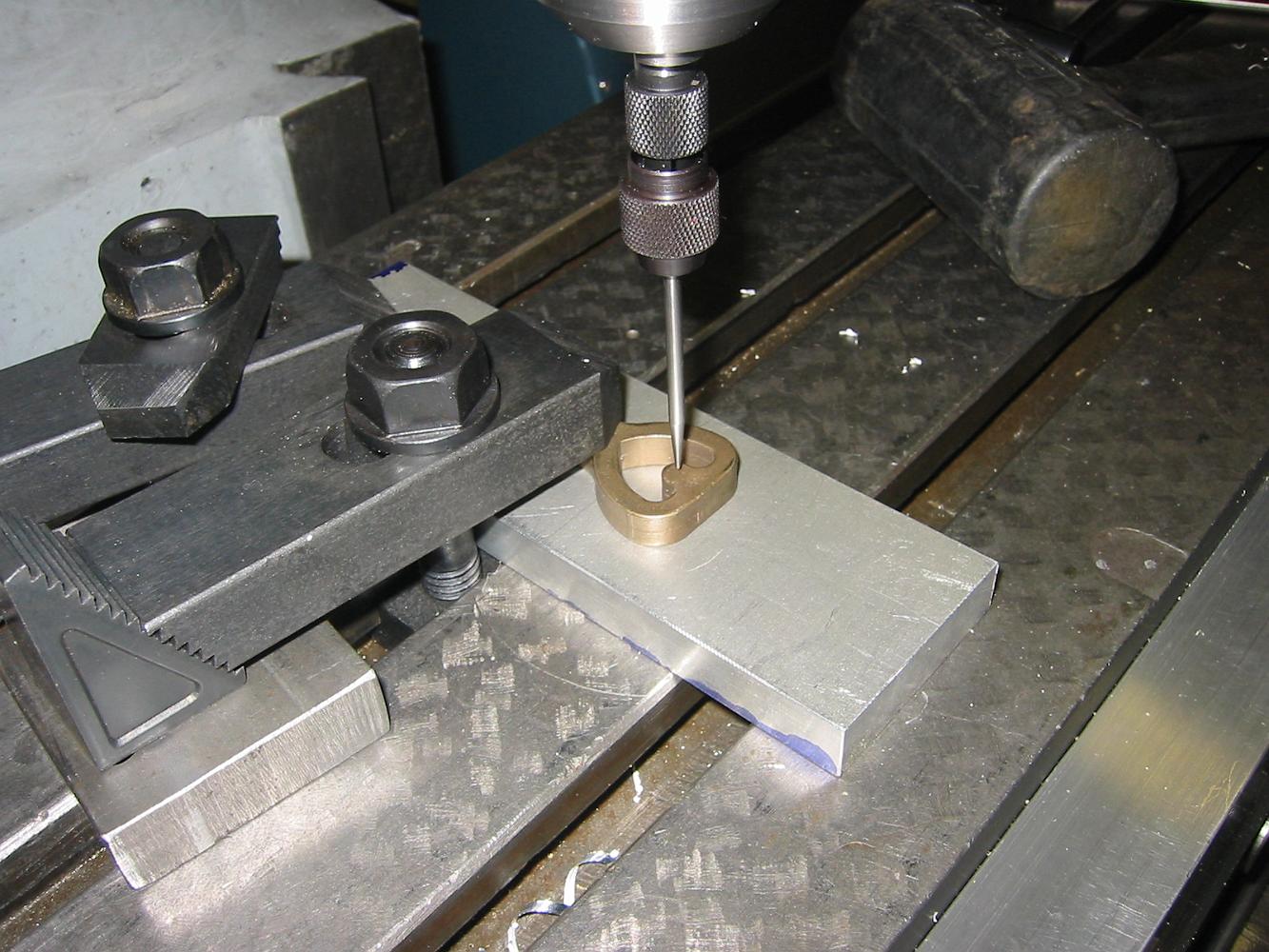

18-Apr-07 Next we start work on the heart links. A piece of aluminum is bolted to the table and a dowel pin in it. The mill head is centered over the pin and the Y axis moved the correct distance. A line on the heart portion of the link dividing it in half is scribed, the heart link is put on the dowel pin and clamped down, then we use the pointed wiggler to center the mill head over the scribe mark.
