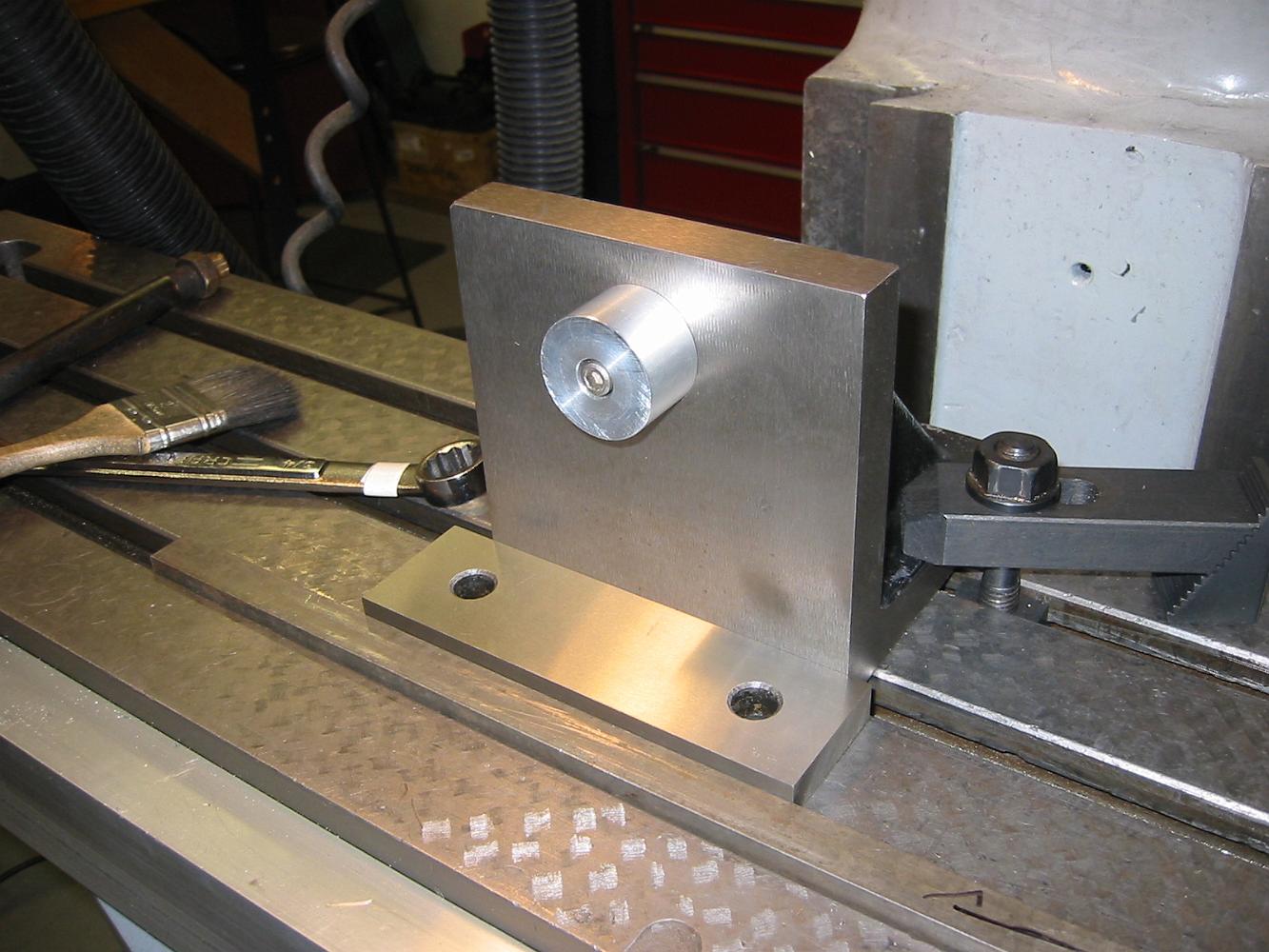

11-Apr-07 Our old friends, the angle plate and aluminum plug are once again re-united. This aluminum plug started out pretty big for the main axle boxes, was turned smaller for the trailing truck boxes and now is a bit smaller for the pilot boxes.
