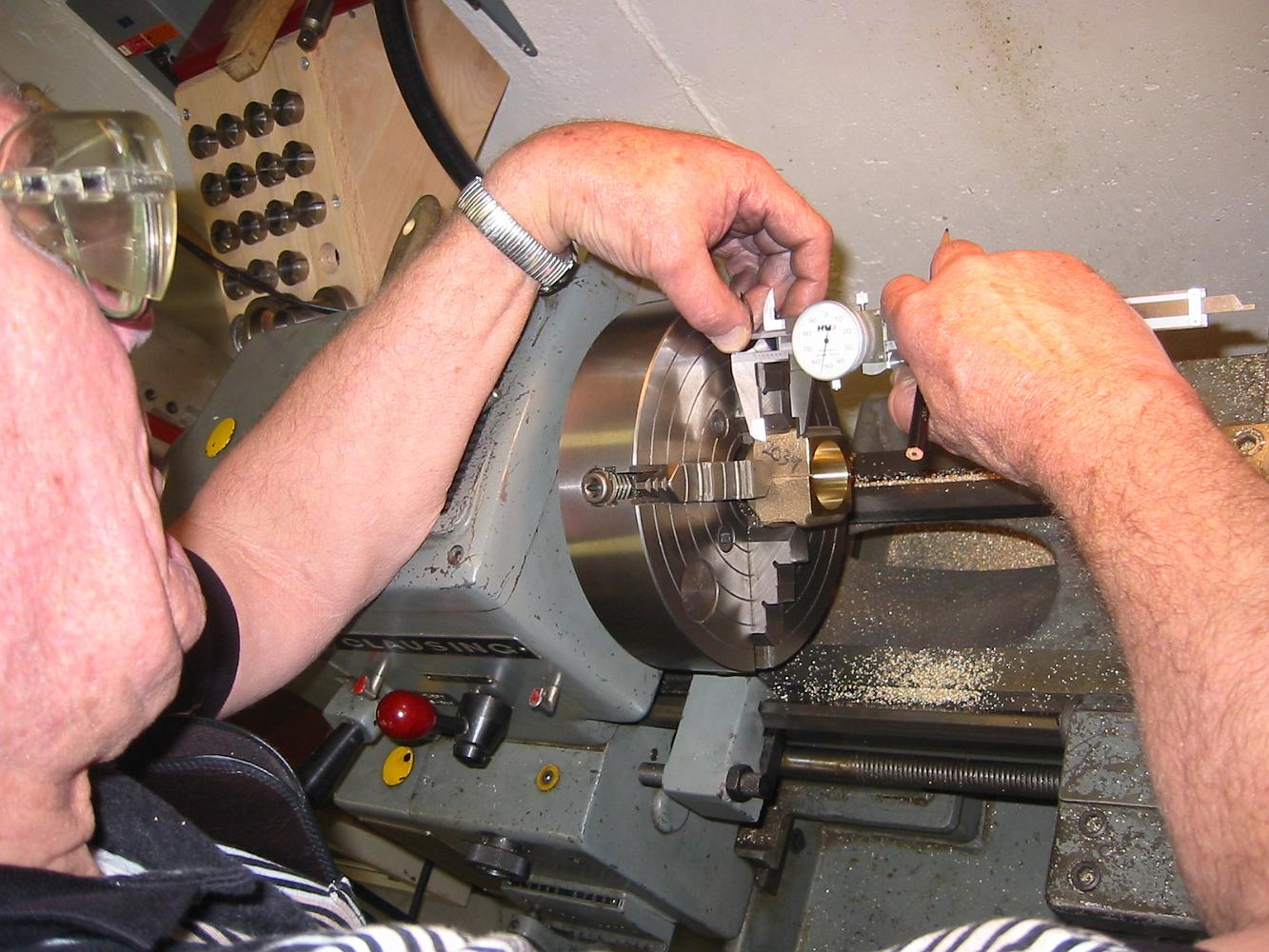

Since the prints reference everything from the back, a quick check to see about how more can be removed from the back while keeping the centerline of the axlebox in the correct spot.
