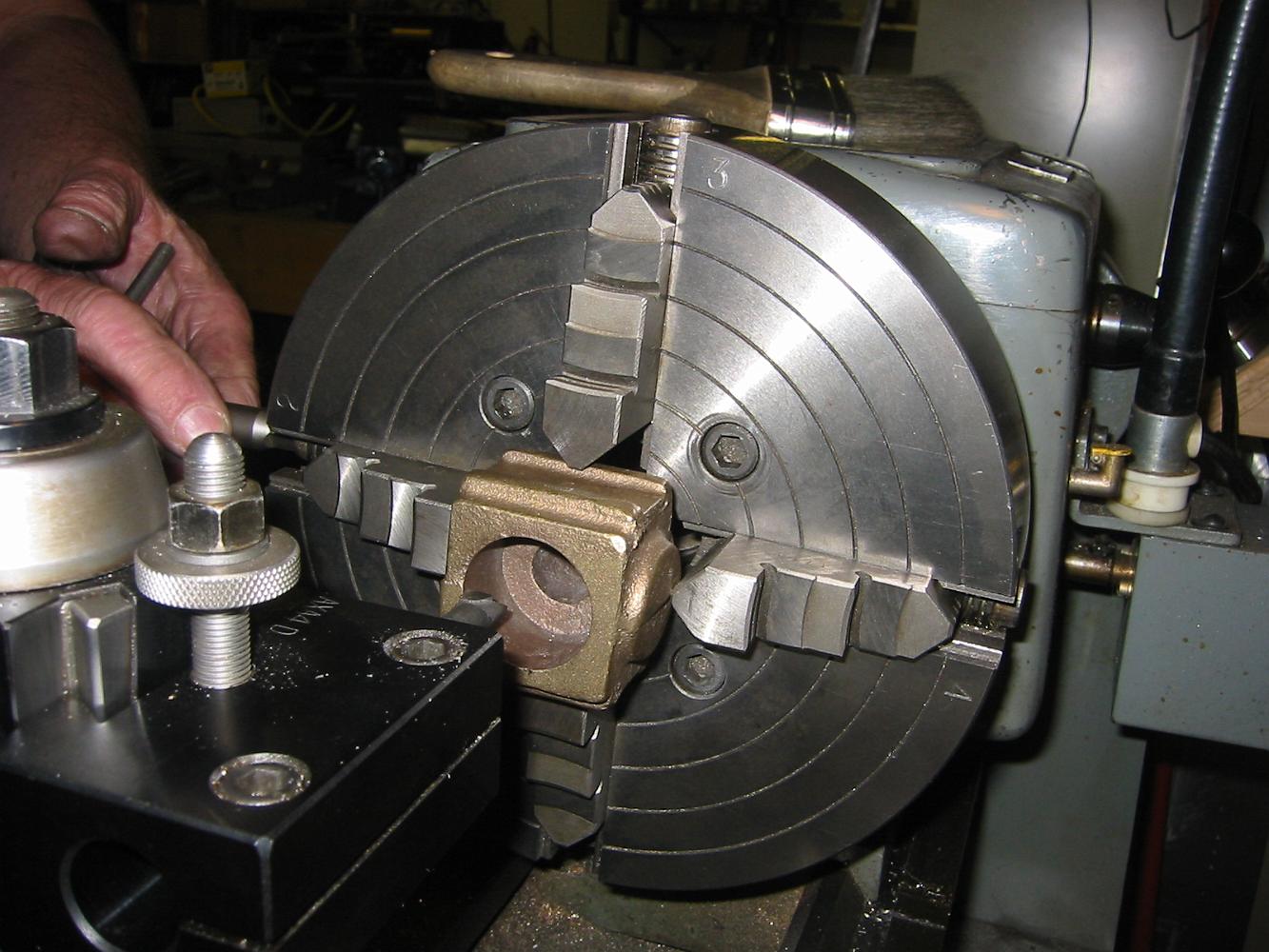

4-Apr-07 By now, this is almost a familier setup. The front pilot axle box is chucked up in the 4-jaw chuck, centered by eye, and rough bored.
