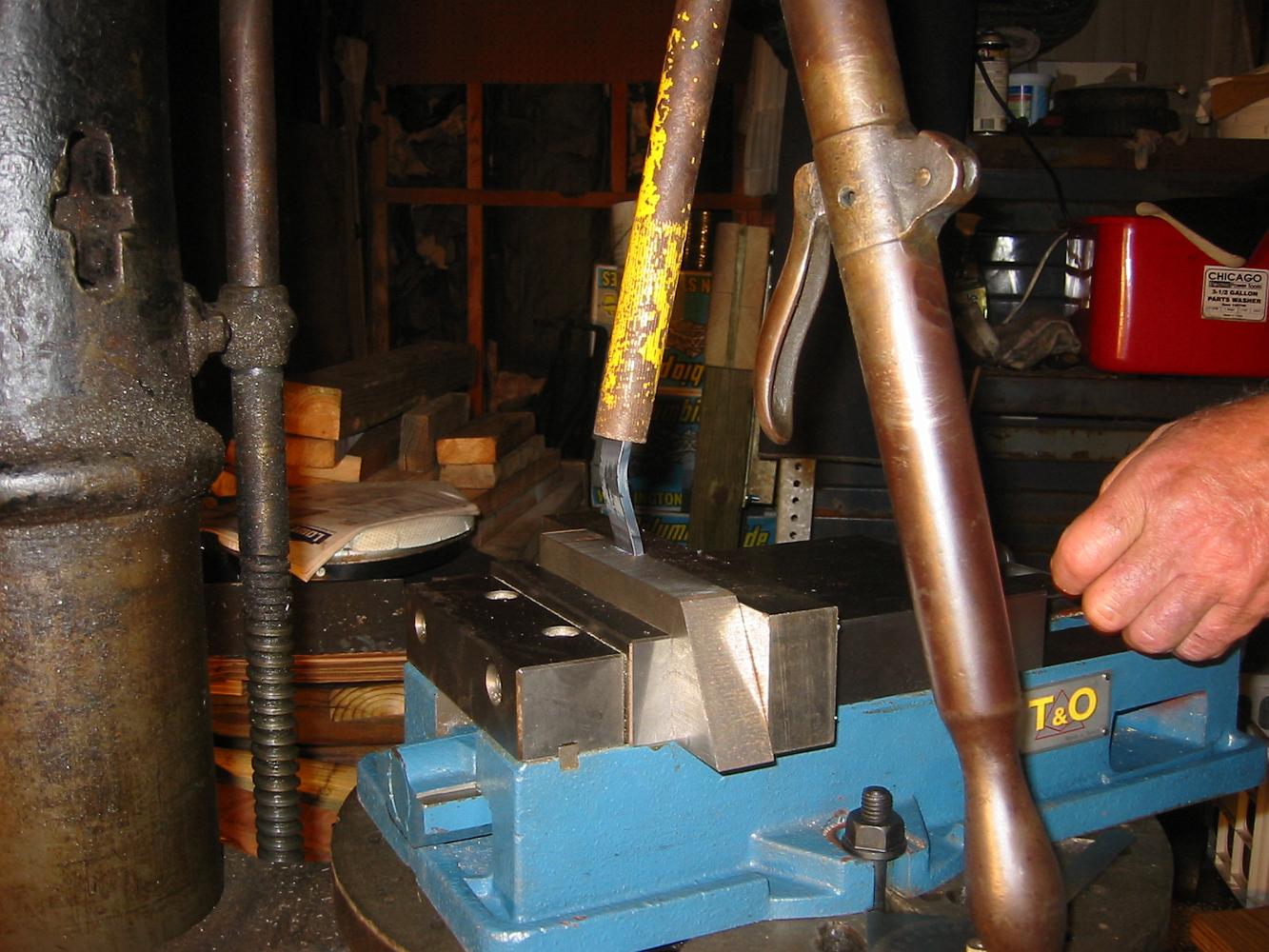

Putting the second bent in the bracket. The yellow pipe we are using as a bender is actually a handle for the floor jack.
