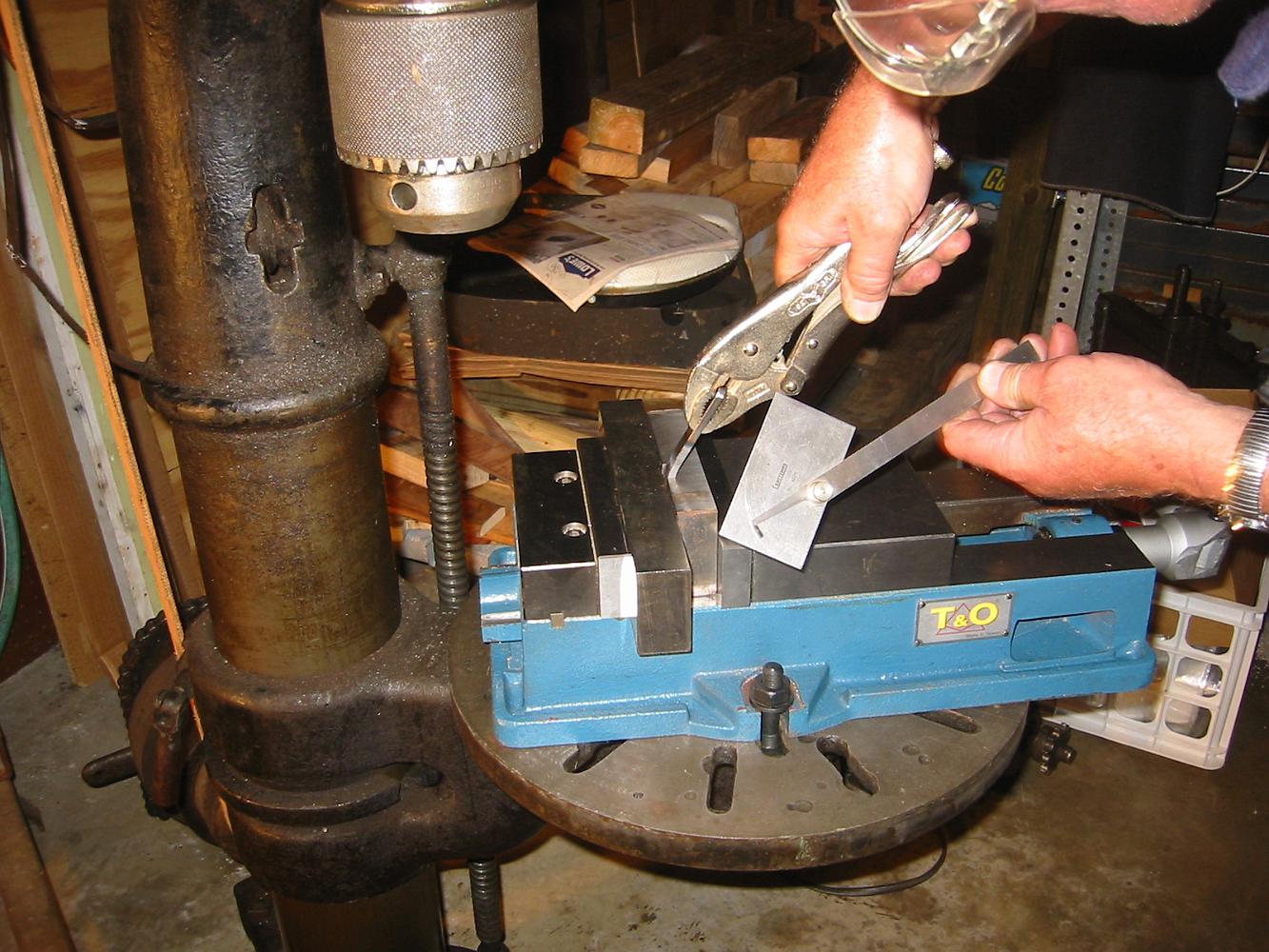

Bending the brackets. For the smaller lower ones we just used vice-grips to hold them. The big machinist vice is clamped down on the antique Knight drill press.
