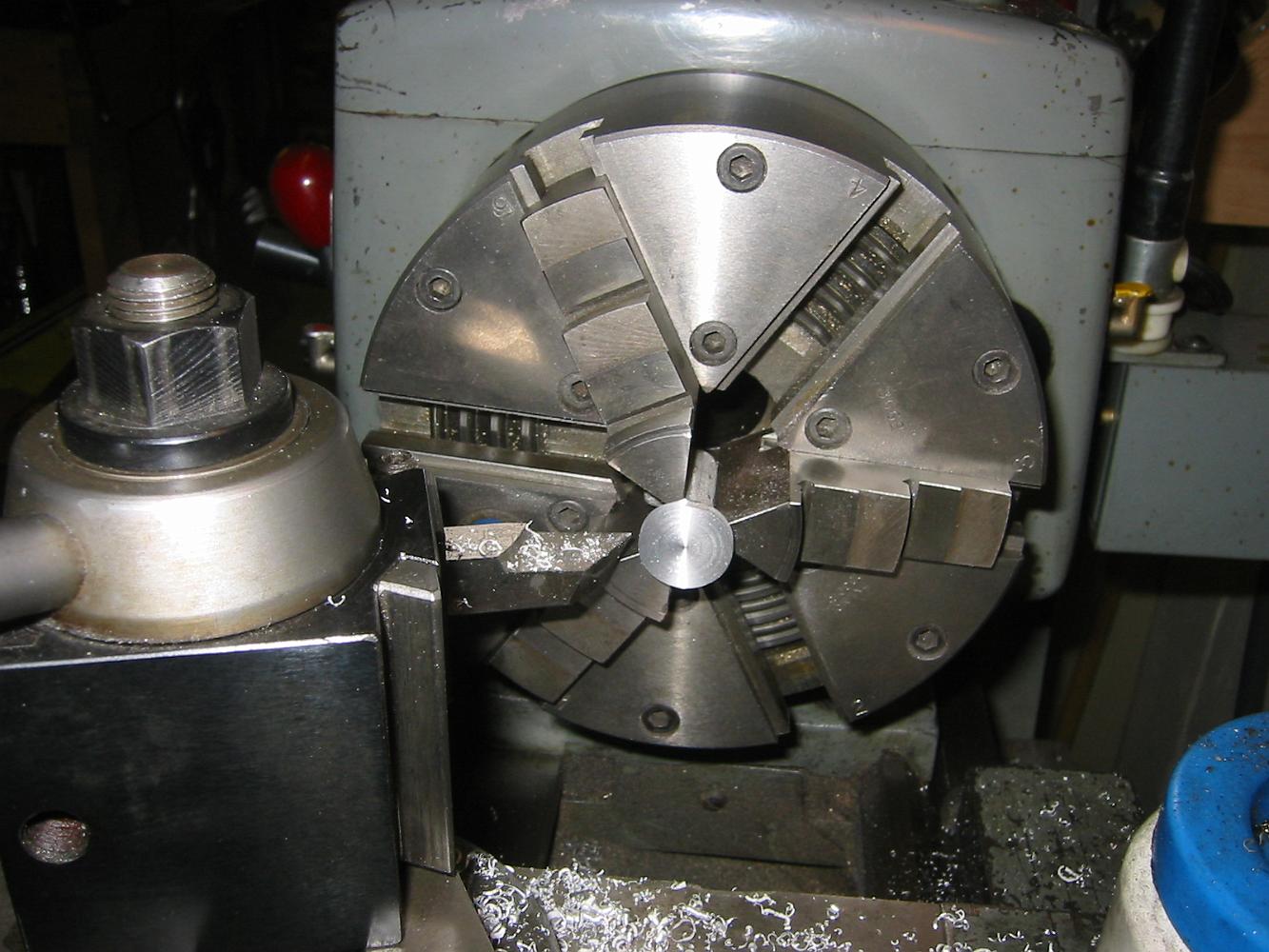

1-Aug-07 Bill shows me yet another setup for holding parts. In this case, we need to turn the flagstand, but the lantern bracket on the side of the flagstand made it impossible to chuck conventionally. Solution: use the 6-jaw, remove three jaws and put the bracket inbetween to of the jaws. Why not use the 3-jaw? My 6-Jaw is an 'Adjust-Tru' chuck, we can move it around in case the casting is off center.
