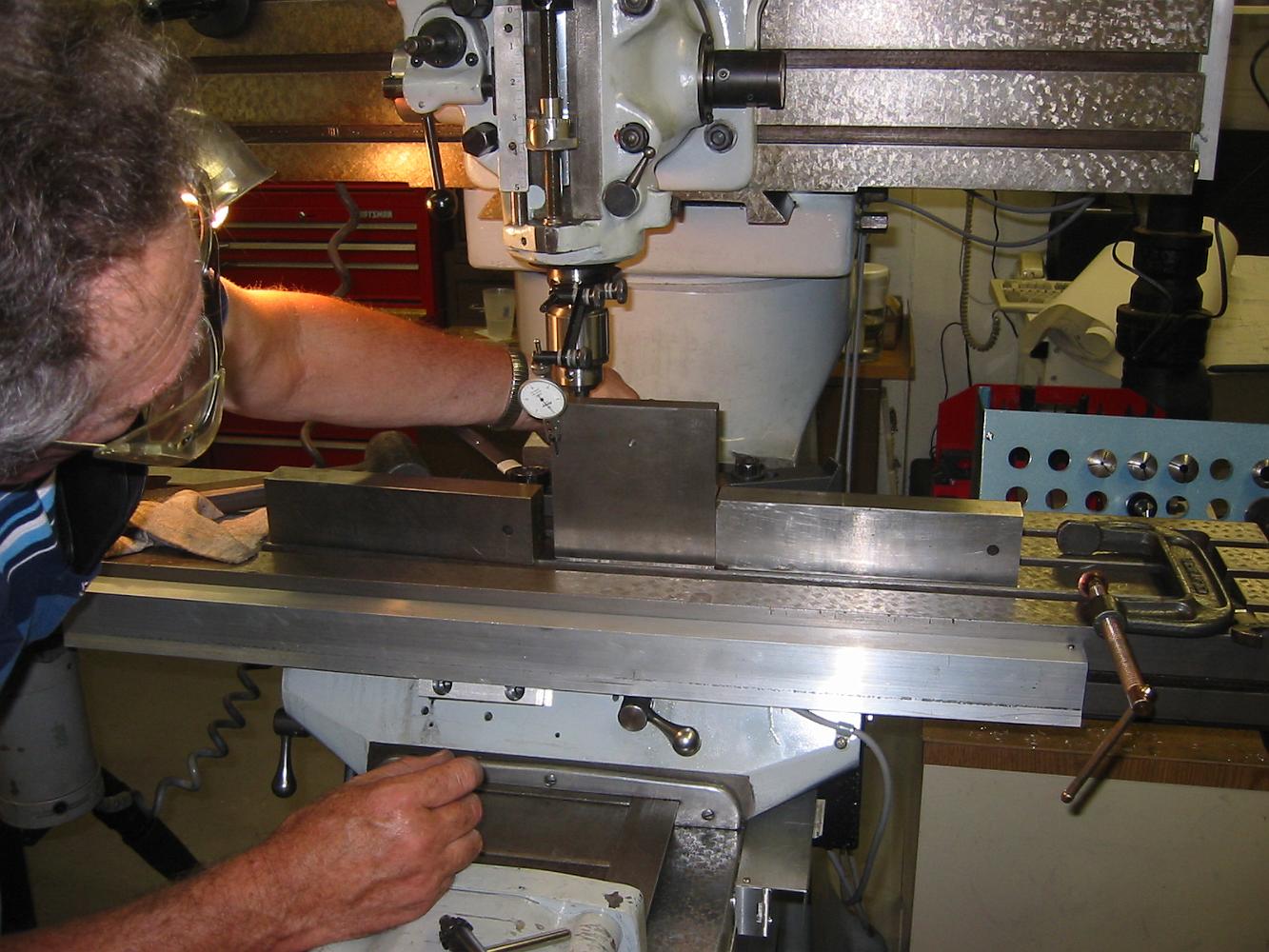

Squaring up the angle plate to machine the bottom of the front bumper. We have to use the angle plate because the top of the bumper is unmachined, but the front and back surfaces are so the back reference surface will be bolted to the angle plate. We will use two large parallels to set the machined bumper tabs on and insure the bumper is parallel to the table.
