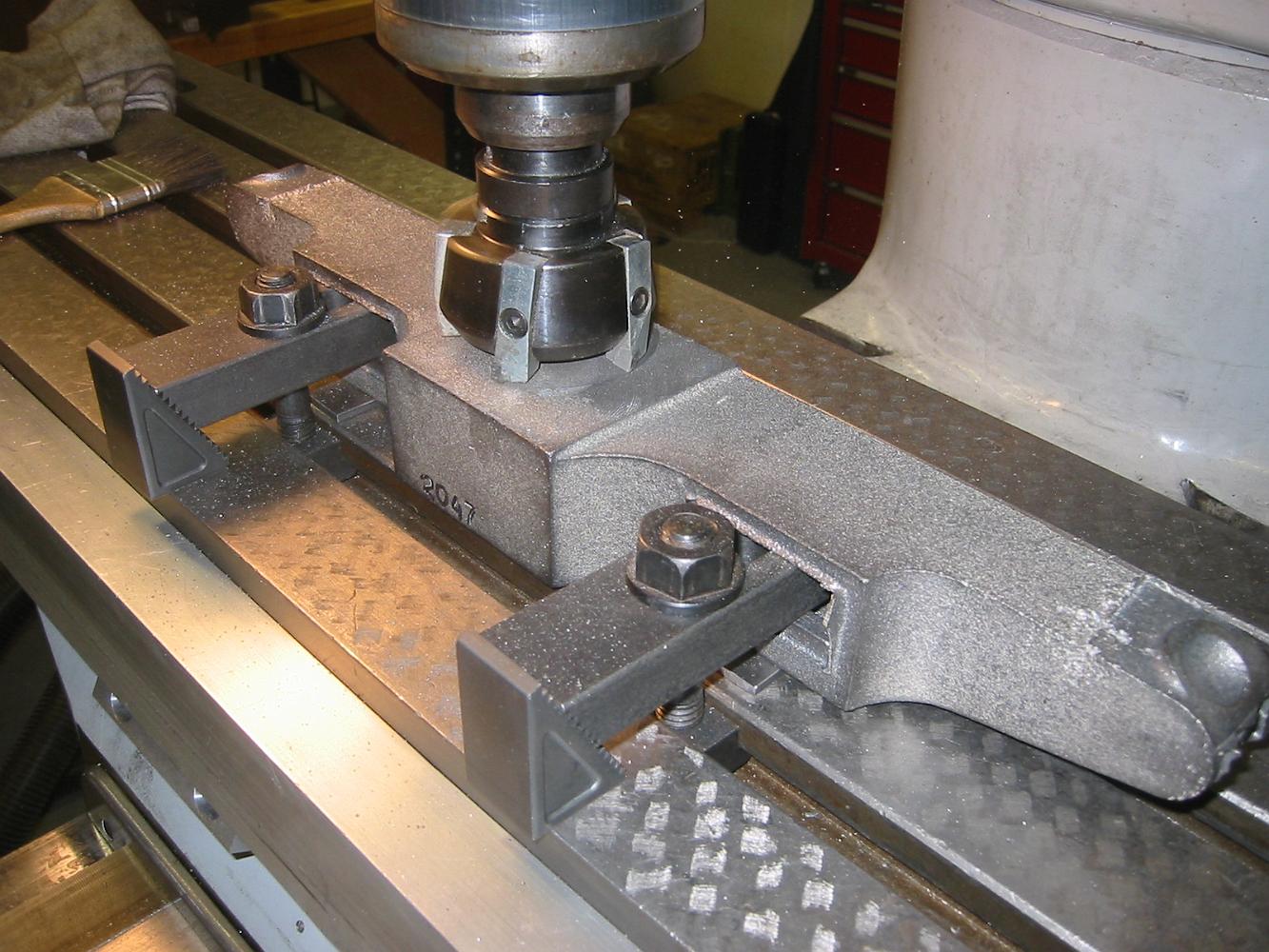

With a machined reference surface on the back, we put some spacers on the table and machine the coupler pocket surface parallel to it.
