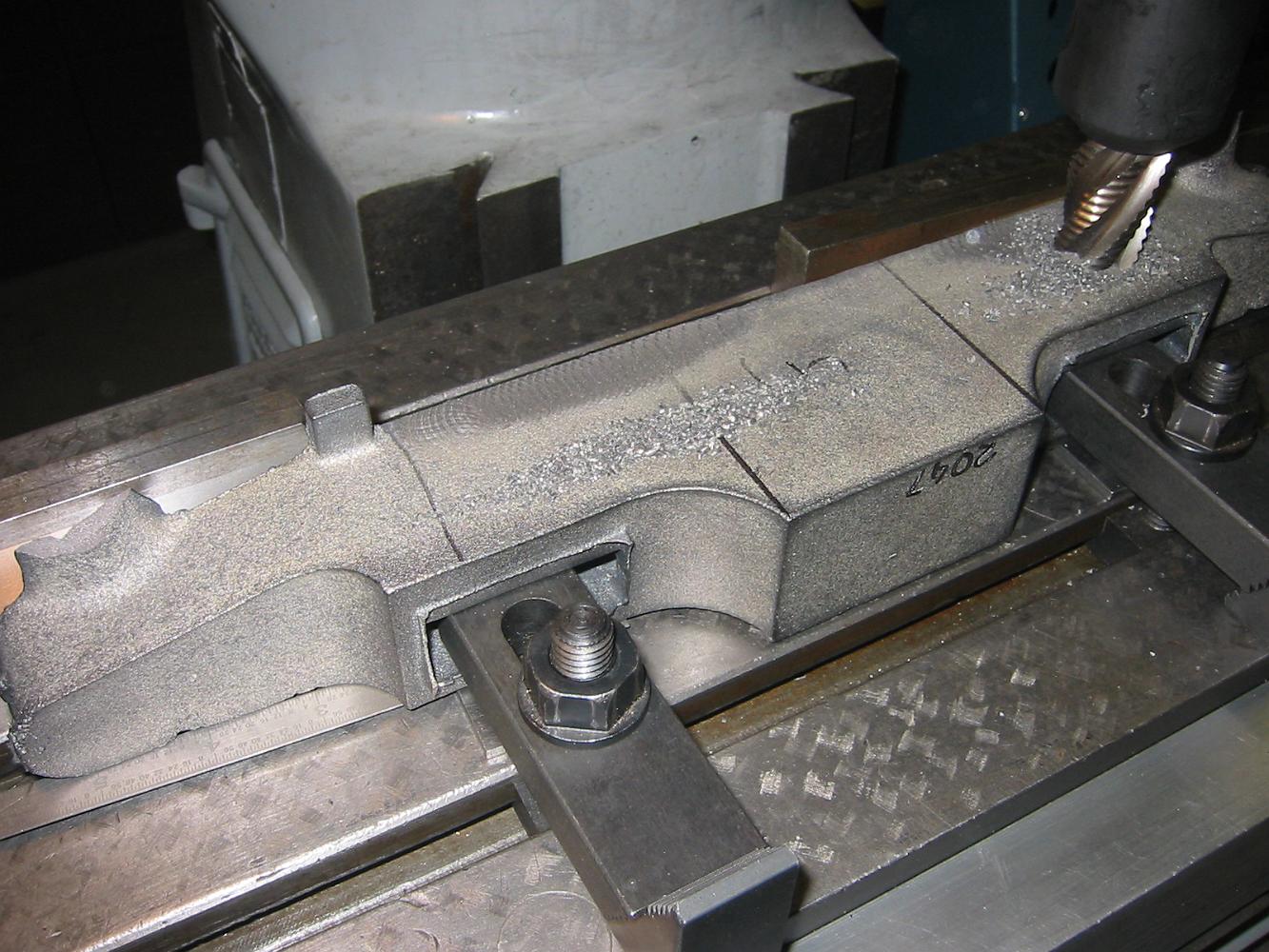

Machining the back, but only within the top tabs which will cover the front frame spreader contact surface.
