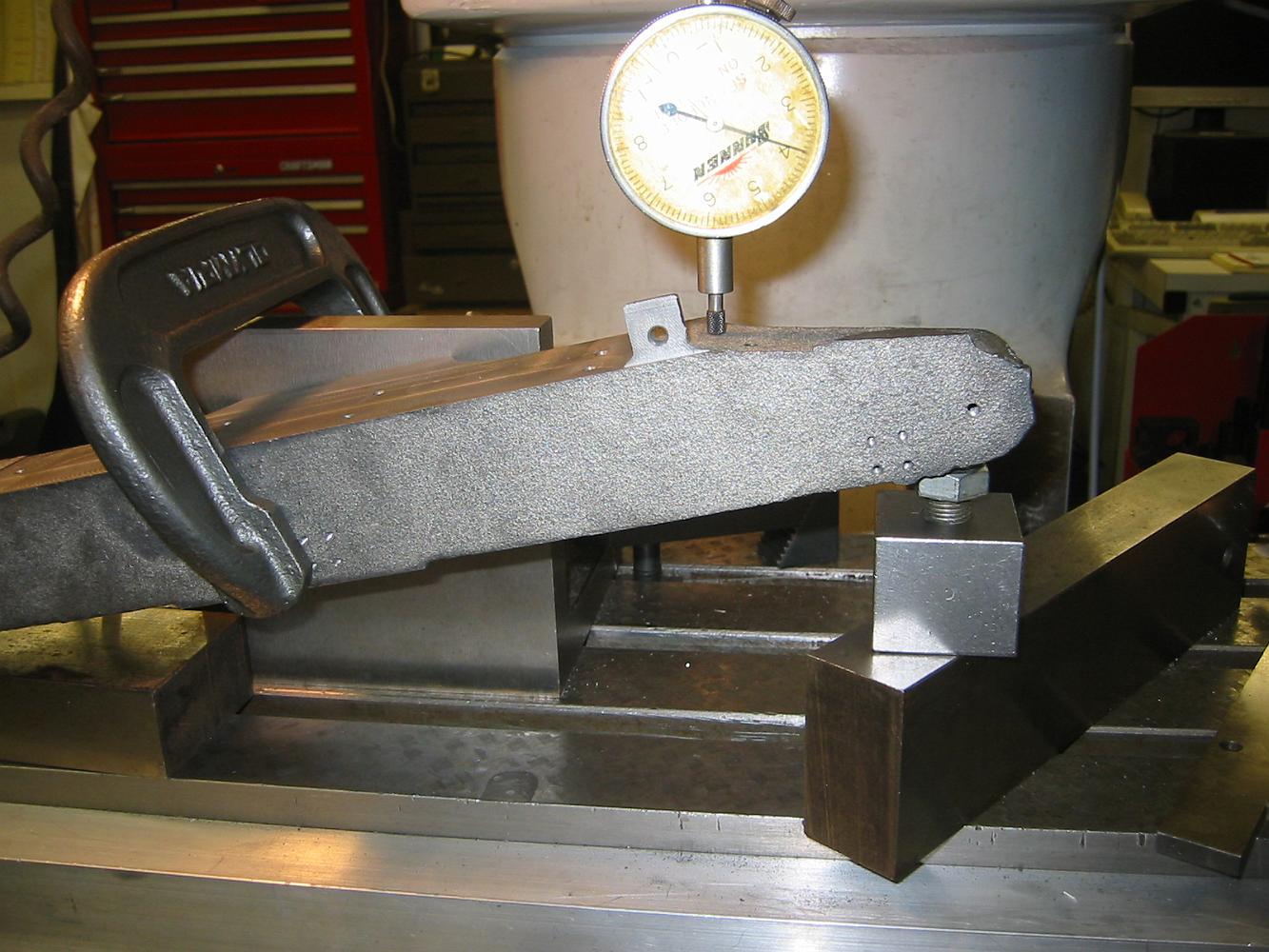

11-July-07 With the top done, we indicate the back as straight as we can with the casting to drill the holes in this end.
