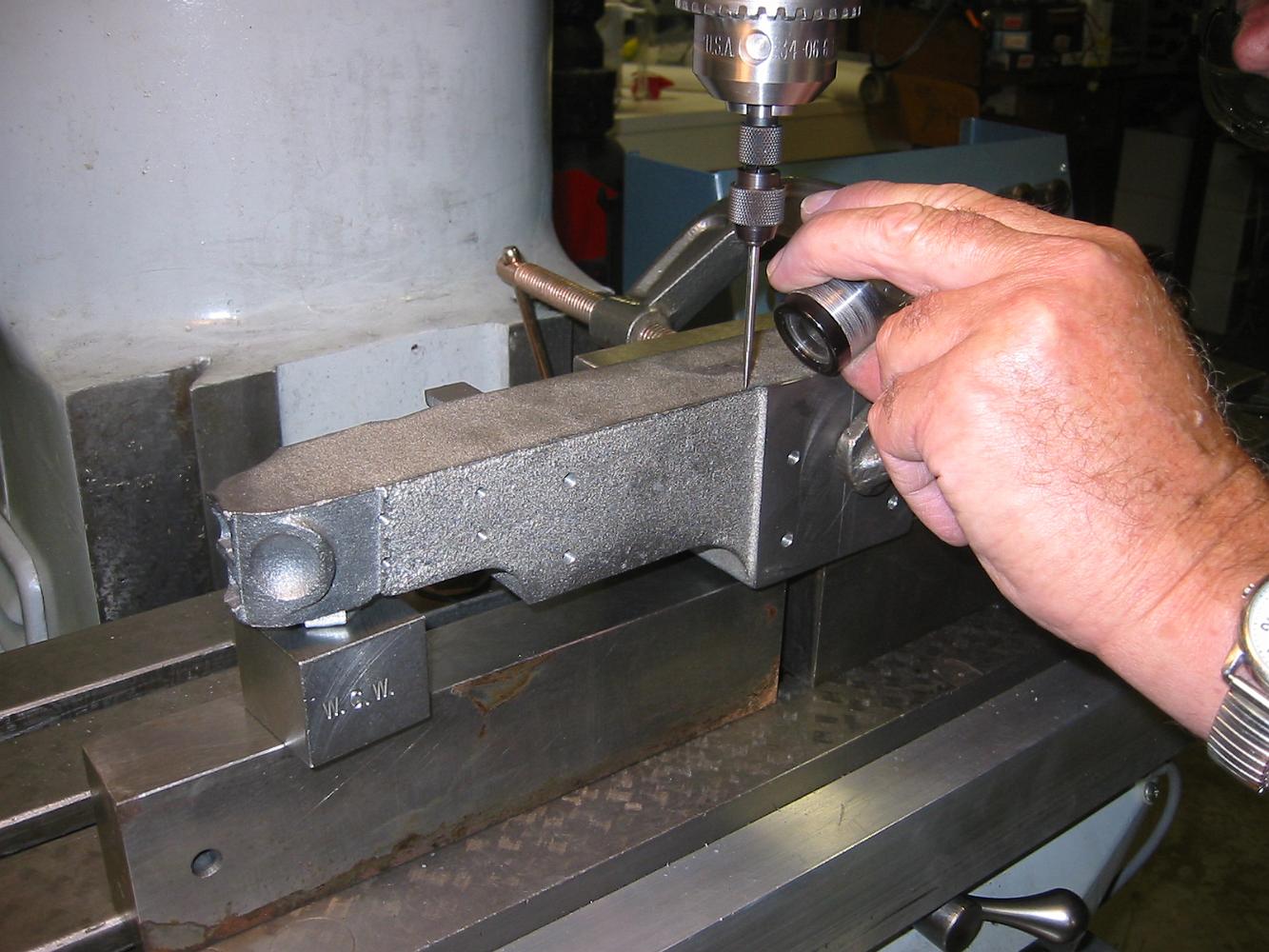

11-July-07 Finishing the bumper top. Bill picks up the reference point the drawing specifies with the wiggler.
