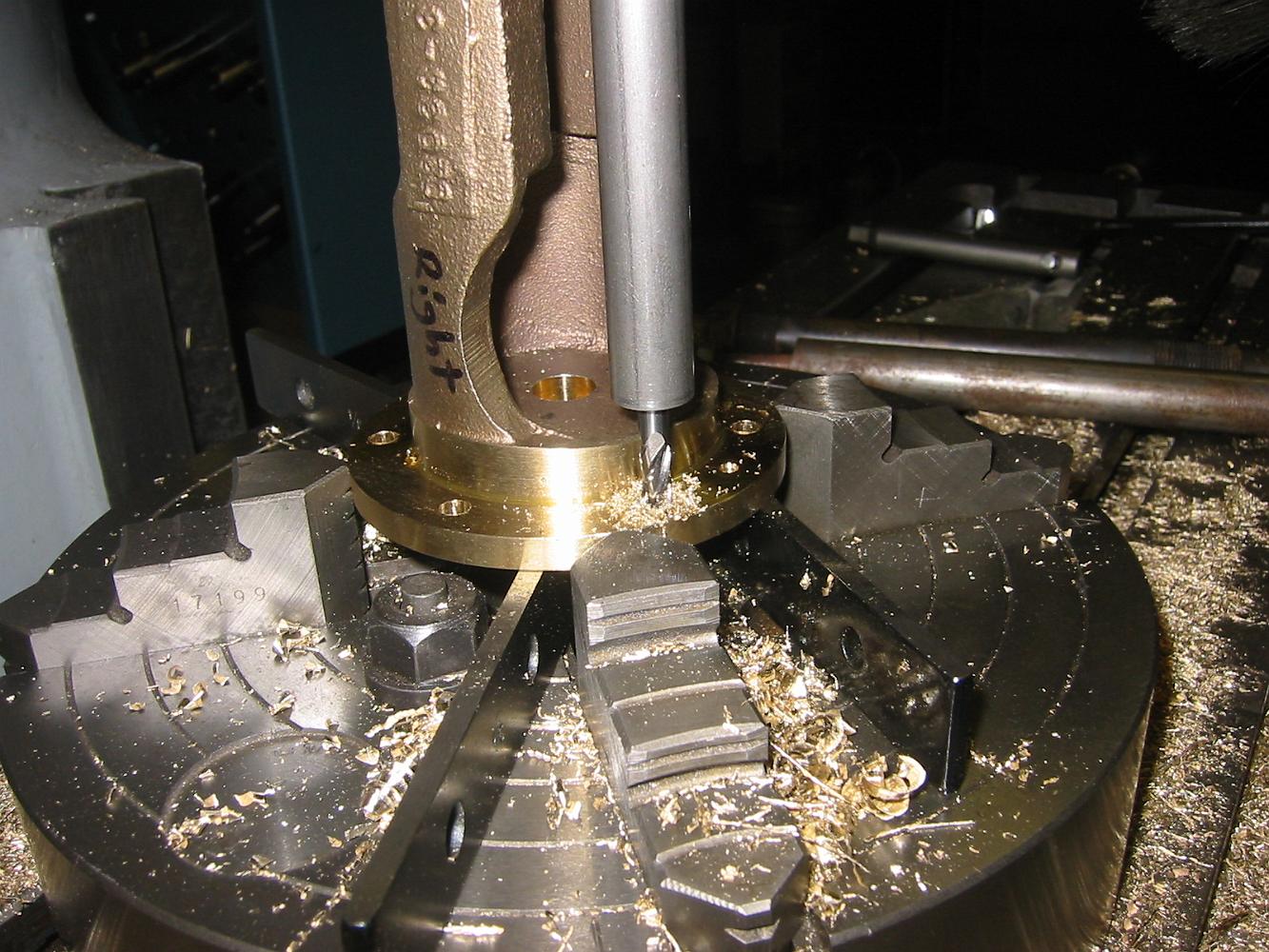

4-Oct-06 We discover the holes previously drilled are 0.014 off. We don't know why, maybe the y-axis handle got bumped. We have to make a custom endmill holder to mill the holes back to their proper place. A minor, but two-hour, setback for that nights activities.
