ExhibitPlus ExhaustManifoldRepairAndCompletion19August09 002

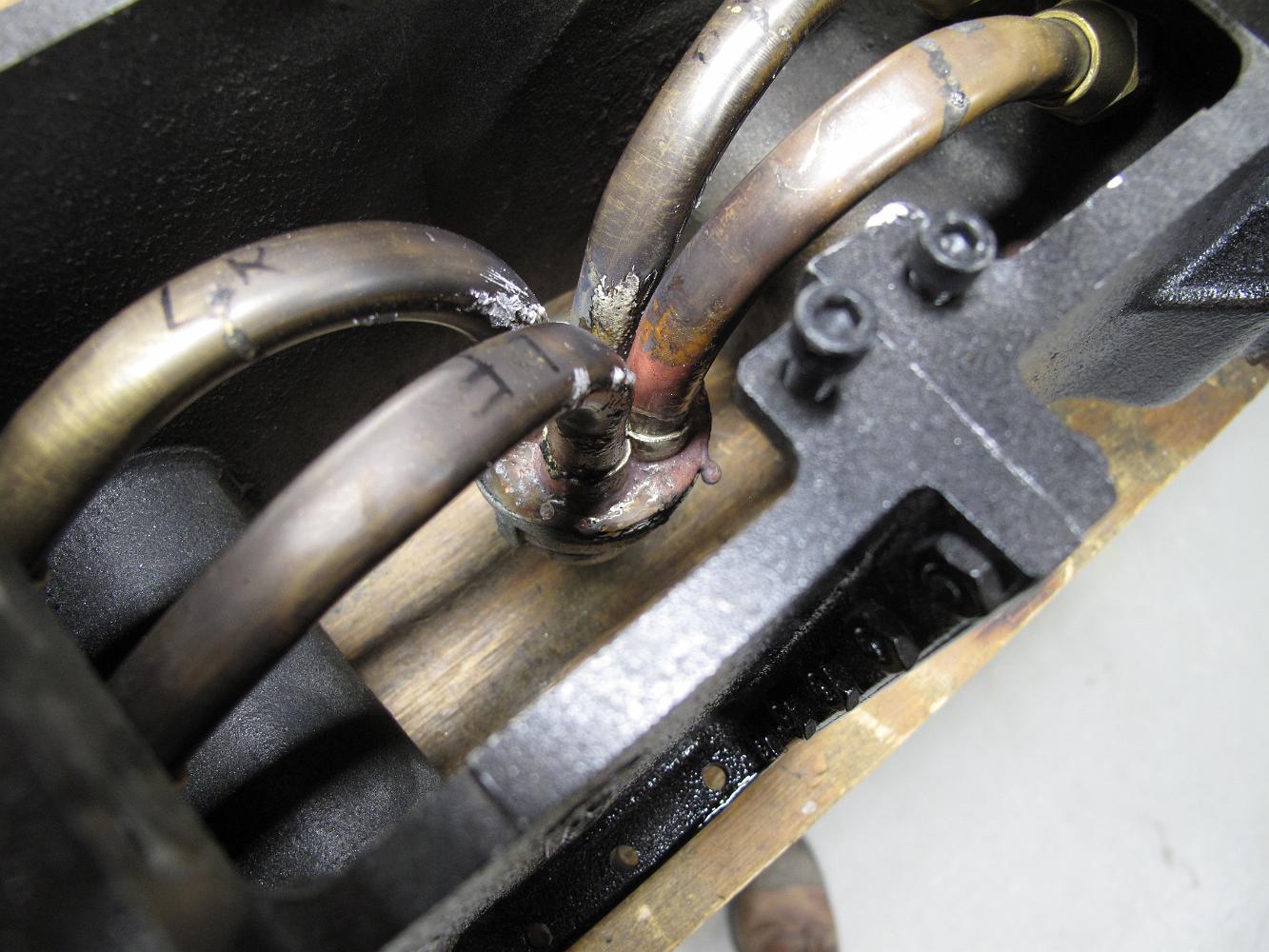

Proposed solution: Using a piece of brass pipe with fits the OD the the pipe, pre-silver solder the inside of the collar and silver solder them to pipes.
