ExhibitPlus ExhaustManifoldAssembly12August09 011

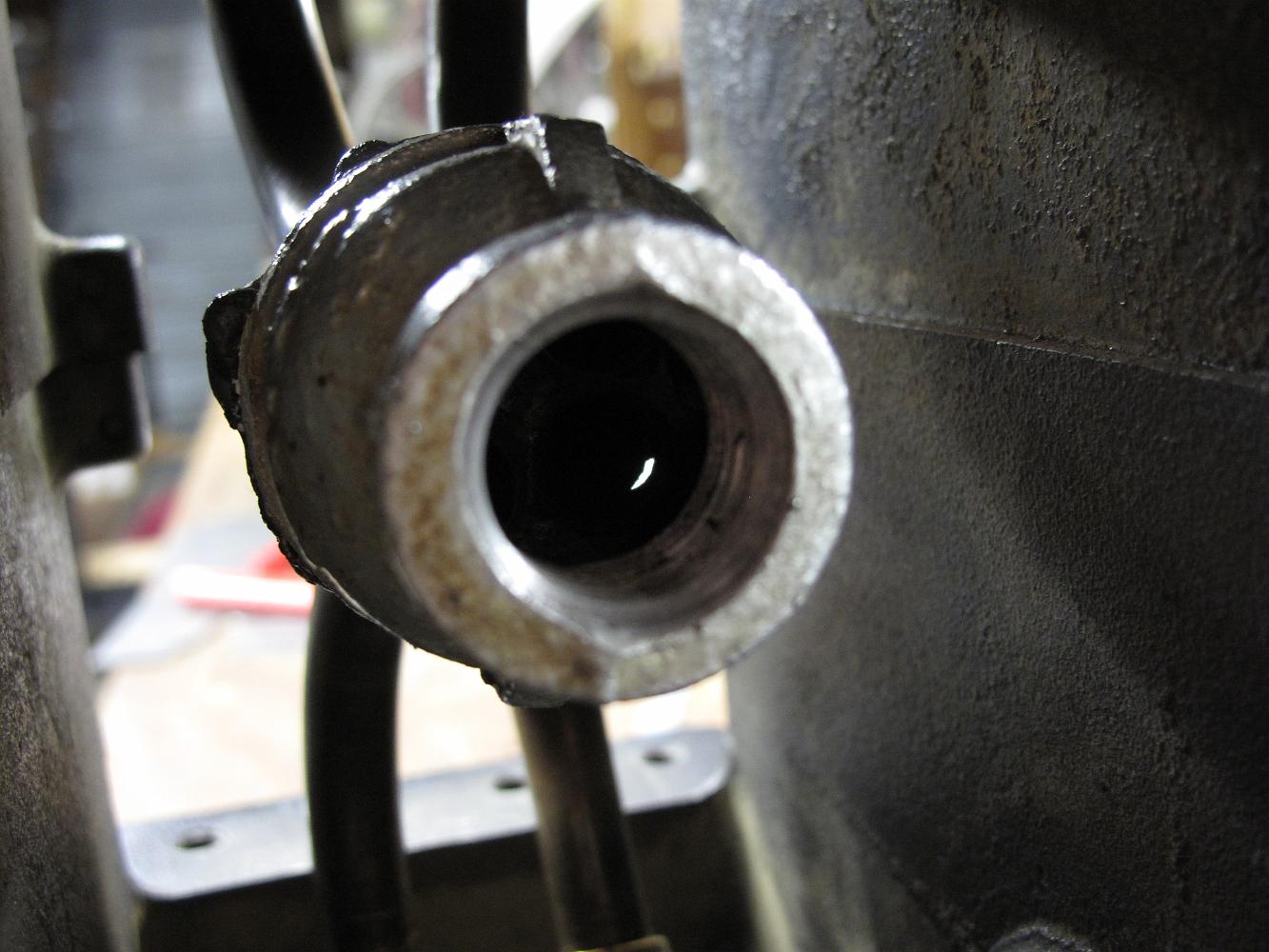

12-August-09 Inspection time at the End of night and shop night 3 on this one assembly. I can't believe how difficult this has turned out to be. But wait--Is that daylight I see in the tubes?? OH NO! I've burned holes in two pipes, spoiling the work! Arrg. Time to walk away for a bit.
