ExhibitPlus ExhaustManifoldAssembly12August09 010

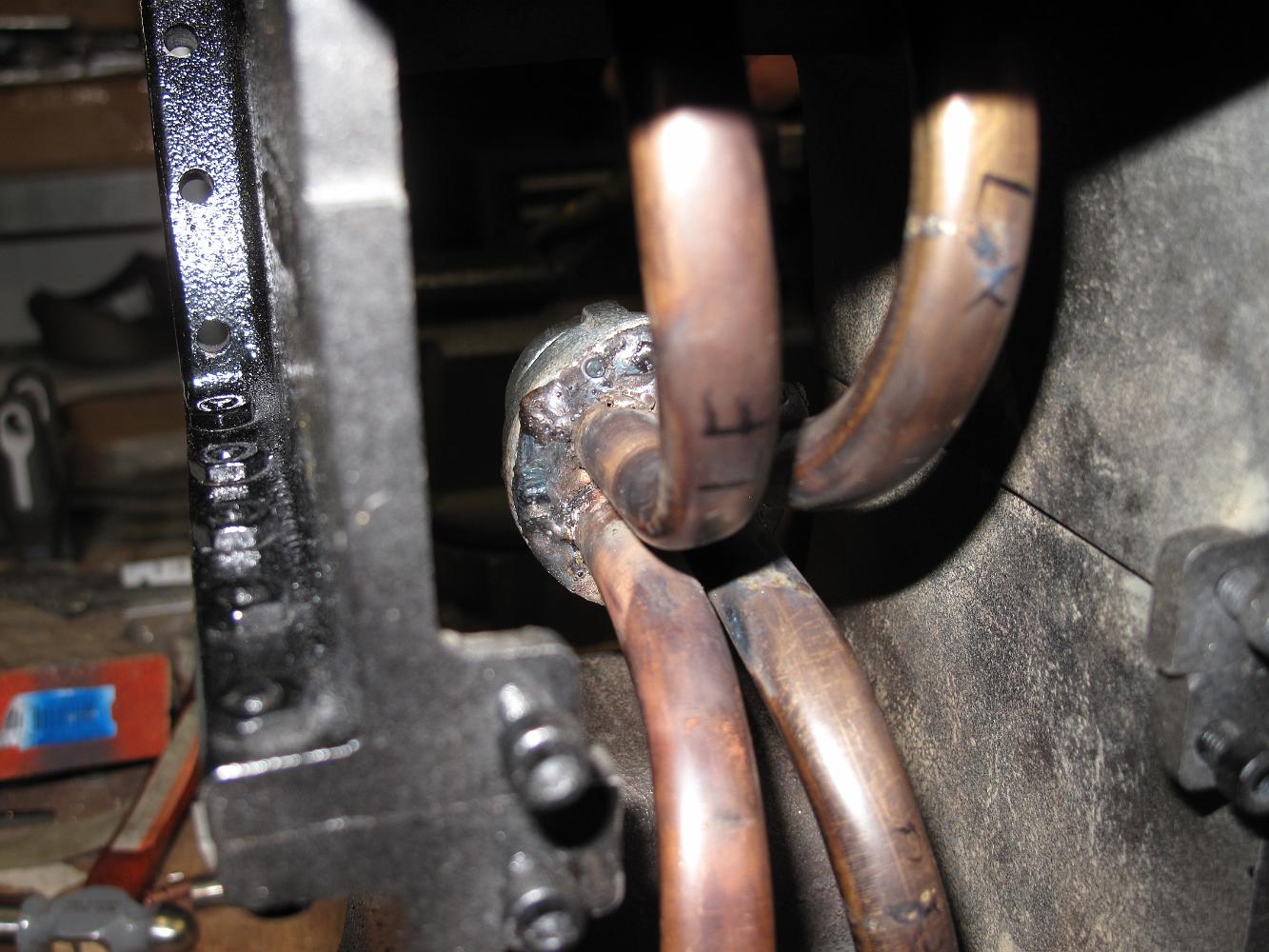

A quick touch with a 3/32" 6013 GMAW rod and the plate is welded to the reducer. Problem was my auto-darkening helmet did not see enough sunshine today and would not darken! ouch! I grab the old face-shield mast and stab in the dark to make the welds.
