ExhibitPlus CylinderWrapperForming19Aug09 001

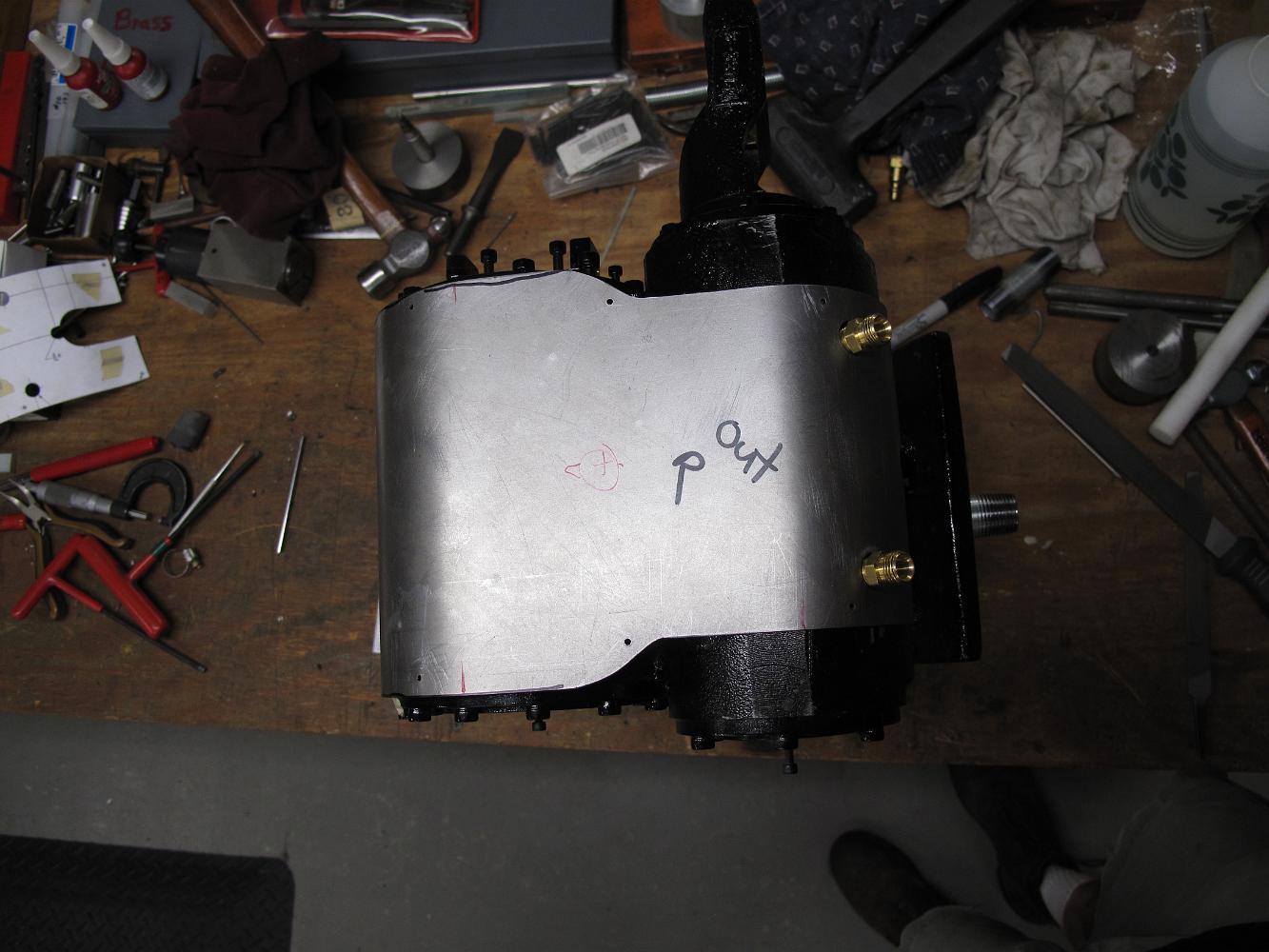

Another thing to do before mounting the cylinders on the frame is to mark out the cylinder wrapper screw holes. If we don't do it now, we will have to stand on our heads to drill and tap the bottom ones. I had previously rough-cut the wrapper, now we spend some time with the roller to form it.
