ExhibitPlus Wheels27July05 004

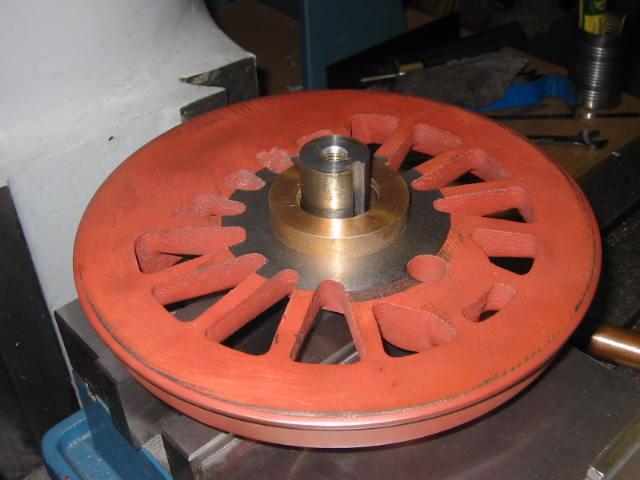

27-Jul-05 The bottom wheel placed on the mandrel, with the spacer in place. If we had just stacked the wheels on top of each other without the spacer on the newly machined reference surface, the wheel backs might not be parallel, resulting in crankpin holes which would be cocked and not perpendicular.
