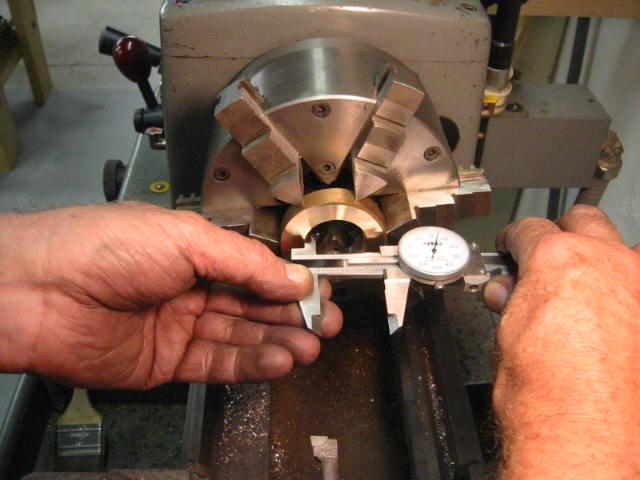

13-Jul-05 Machining a brass spacer to put between the two wheels. We discovered the crankpin holes on each wheel did not line up correctly when placed on a keyed shaft. We will put this spacer between two wheels, back-to-back, to bore out the crank pin holes.
