ExhibitPlus Wheels 002

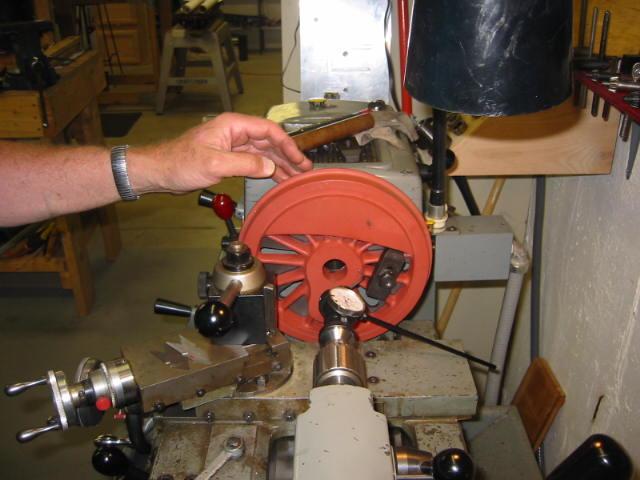

6-Jul-05 The first step is to bore the axle shaft hole. Mounting the wheel on the lathe faceplate, we approach the capacity of my little lathe. We used a co-axial dial indicator to true the wheel as close to center at possible.
