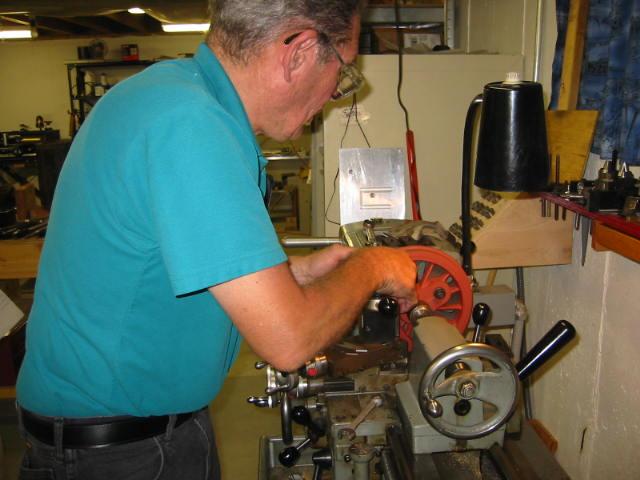

6-Jul-05 With the spring rigging done, it is time to work on the wheels. The quality of the wheels from the supplier was good, but, we were not satisfied with the machine work completed by a previous machinist. We set out to make all the axle bores the same size, align the crankpins with the keys, and bring the thickness of the hubs closer to print.
