MikadoCrankPins25Aug05 002  [23 of 74] ExhibitPlus MikadoCrankPins25Aug05 002

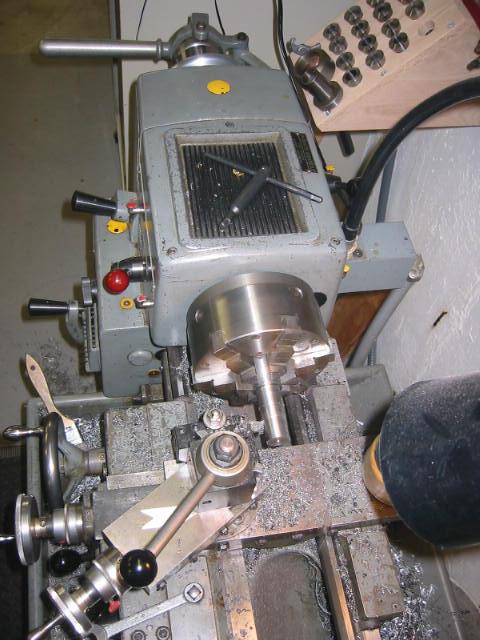

25-Aug-05 Machining the crankpins. We had to do some figuring since after machining the new crankpin holes that part of the pin held in the wheel did not match the blueprint.
